SidingTS-S400-CR
TerraCrest 100
Trapezoidal Multi-Rib
Overview
The TerraCrest 100 is a versatile trapezoidal multi-rib siding panel designed for residential and light commercial applications. Its balanced rib pattern provides excellent water shedding and structural rigidity while maintaining a clean, modern profile.
914mm
Coverage
1066mm
Feed Width

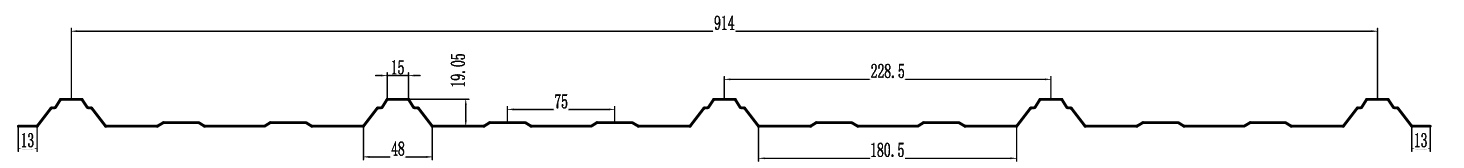

Cross-section profile (dimensions in mm)
Technical
Specifications
PropertyValue
Coverage Width914mm
Feed Width1066mm
Profile Depth19.05mm
Rib Width15mm top / 48mm base
Material Thickness0.5mm
Edge Detail13mm both sides
Available Gauges24ga, 26ga, 29ga
Ideal For
Applications
Residential siding
Light commercial cladding
Agricultural buildings
Carports & canopies
Benefits
Key Features
- Multi-rib design for enhanced rigidity
- Excellent water shedding capabilities
- Available in 24ga, 26ga, and 29ga
- Compatible with all coating systems
- Custom lengths up to 40 feet
Interactive Preview
Explore in 3D
Rotate, zoom, and explore color options to visualize exactly how TerraCrest 100 will look in your project.
