22ga
Project-order option
TerraCrest 100 + 200
A common project-order choice for the TerraCrest profiles. Confirm the decimal thickness and selected finish when planning the order.
Finishes / Material library
Coatings and
material options.
Choose a steel finish system, material and thickness to suit your project. Our range includes PVDF, SMP and selected polyester finishes, plus a separate zinc collection.
- Colour collection
- 101 references
- Coating systems
- PVDF / SMP / Polyester
- Material supply
- Stock + project orders
Colour is one part of the specification
Choose the coating
as well as the colour.
A similar shade can belong to a different paint system. Keep the selected series, coating, gauge and material record together when planning the order.
PVDF
Polyvinylidene fluoride finishes in the Core, Signature and Printed PVDF series. Select the specific material and coating build for the project's requirements.
SMP
Silicone-modified polyester finishes in the Classic, Printed SMP and Textured series. SMP is a distinct coating system, not a different name for PVDF.
Polyester
Appliance White in the Classic Series uses polyester. The collection identifies this separately from SMP and PVDF.
Zinc is a different material.
Our Zinc Series includes naturally pre-weathered and resin-coated zinc surfaces. Each has its own material specification. Zinc thickness and forming requirements are reviewed separately from steel gauges, and steel paint warranties do not automatically apply.
Explore the Zinc SeriesConfirm project-specific performance and warranty requirements against the selected material's technical documents and the written order.
Material selection
Specify the whole material.
Choose from stock and project-order materials. Match the substrate, decimal thickness, finish system and profile to your project's requirements before confirming the order.
What makes up prepainted steel?
Paint, metallic protection and base metal are separate parts of the specification. Their exact build varies with the material selected.
Surface finish
Select the colour, appearance and coating system. PVDF, SMP and marked polyester options have different coating builds.
Metallic protection
Prepainted steel may use a galvanized or aluminum-zinc coated substrate. The coating designation belongs to the selected material.
Base metal
Specify the decimal steel thickness and grade needed for the profile and project. Gauge alone is not a universal thickness specification.
Reverse-side finish
The backer coating and suitability for the intended exposure are confirmed with the material specification.
Actual zinc is a different base material, not one of these painted-steel layers.
Current 26-gauge Core stock reference
These values apply to the current identified Core stock. They do not define every material in the collection. Other orders can have different substrates, decimal thicknesses and coating builds.
- Material
- 26-gauge prepainted aluminum-zinc coated steel
- Base-metal thickness
- 0.48 mm BMT
- Total-coated thickness
- 0.52 mm TCT
- Finish
- 70% PVDF prepaint
- Paint build
- 30 microns topside / 7 microns reverse
- Metallic coating
- AZ150
- Material standard
- ASTM A792/A792M
- Core finishes
- Ice White, Cream White, Foundry Grey and Amberwood
Available quantity and stock reservation are confirmed with the order. Project performance and finish-warranty eligibility follow the selected material and applicable documentation. View technical documents.

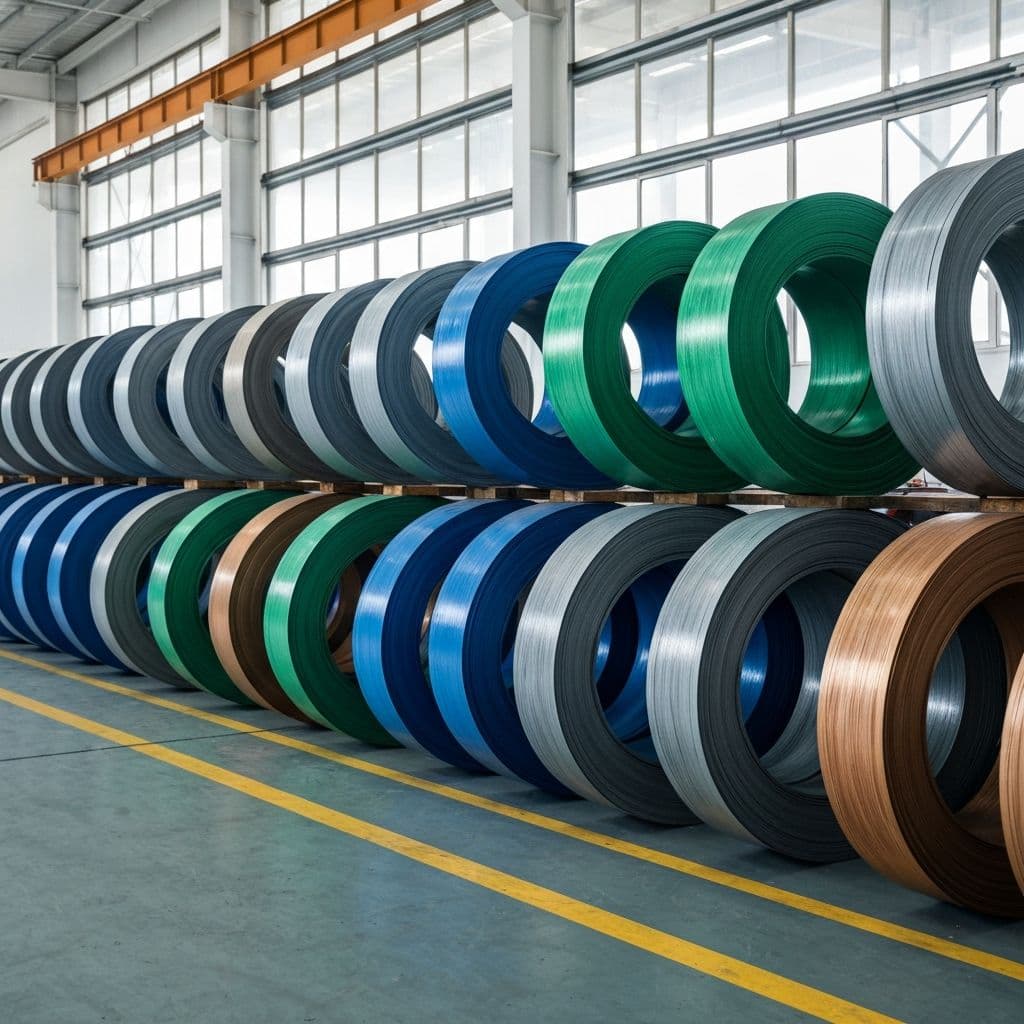

Material supply and common gauges
Common gauges. Broader material supply.
Common steel selections include 22, 24 and 26 gauge. Our material supply extends beyond these choices, with additional gauges and metal thicknesses available for project requirements. Exact material, finish, decimal thickness, availability and profile/forming compatibility are confirmed for each order.
Ask about a gauge24ga
Project-order option
Siding, roofing, and trim
Project-order material for the listed siding, roofing and trim profiles. Finish and quantity affect the available material options.
26ga
Stock and project-order options
Siding, roofing, and trim
Current Core stock is one 26-gauge option. Other 26-gauge finish and substrate combinations are confirmed separately; decimal thickness is specified with the selected material.
Common selections
Common profile gauges
These are common gauge selections, not the full extent of our material supply. Other gauges and metal thicknesses can be requested; suitability for the selected profile is reviewed before production.
ProfileApplicationCommon gauges

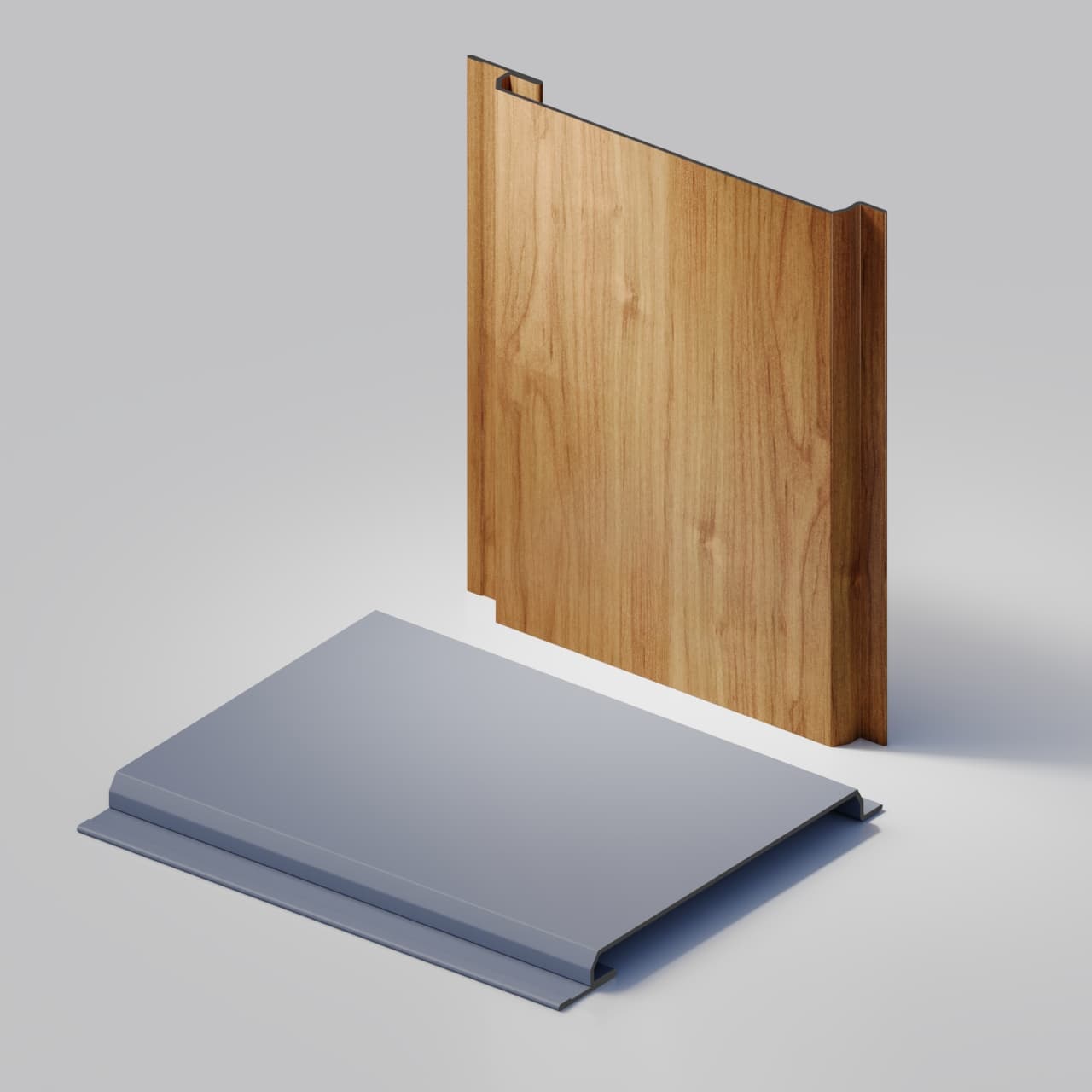

TerraGroove 300
Linear siding
24 / 26

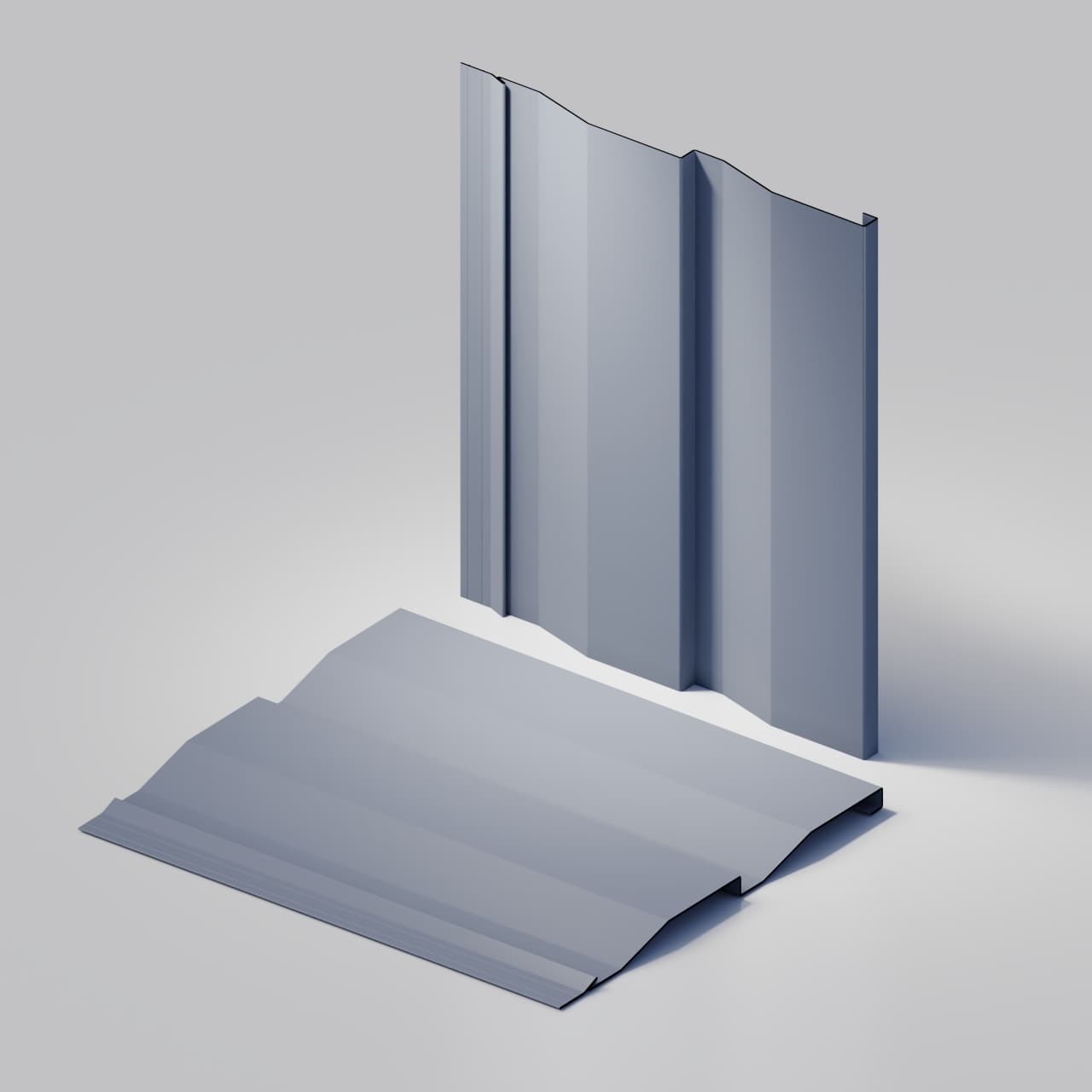

TerraLap 200
Low-rib siding
24 / 26

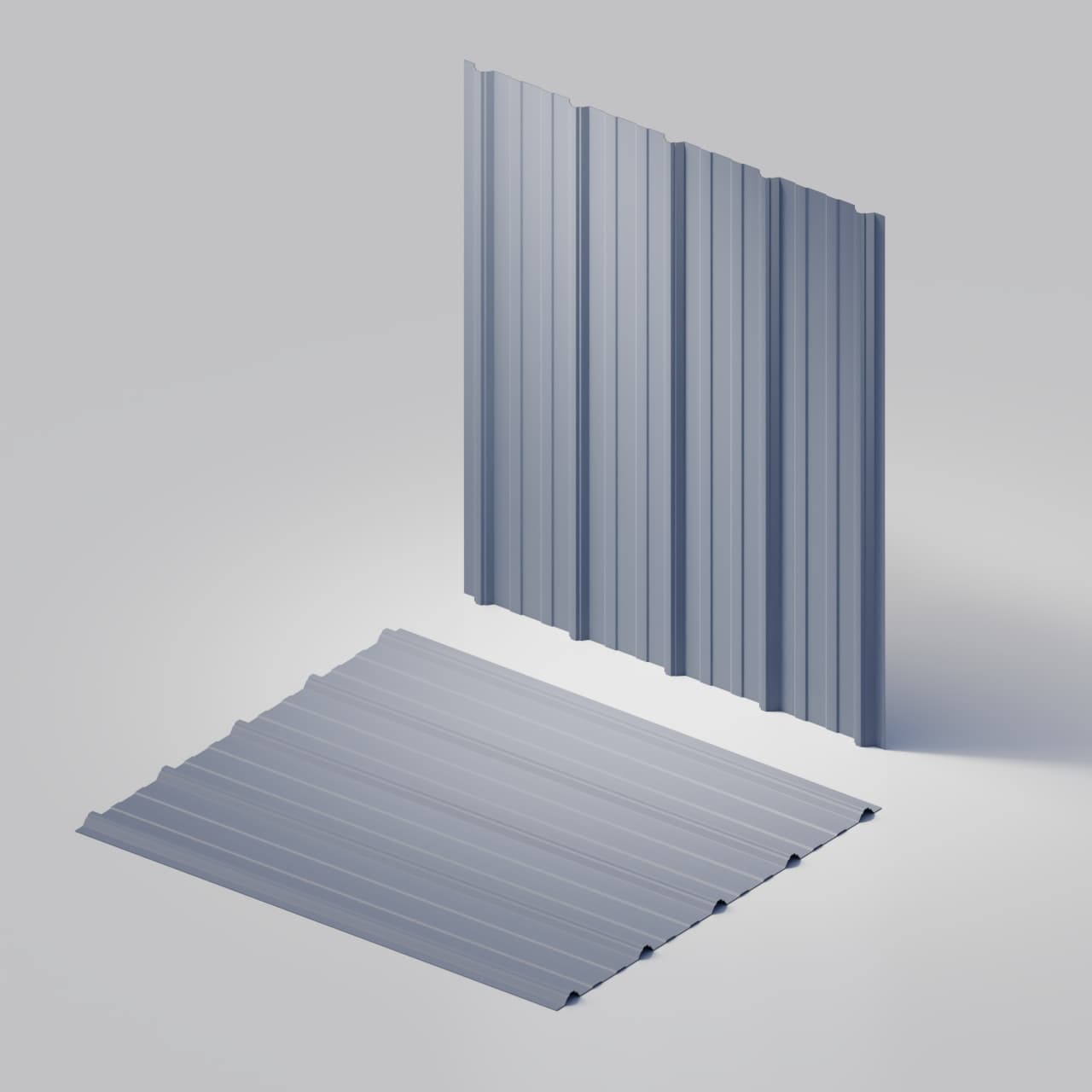

TerraCrest 100
Roofing and siding
22 / 24 / 26
TerraCrest 200
Roofing and siding
22 / 24 / 26

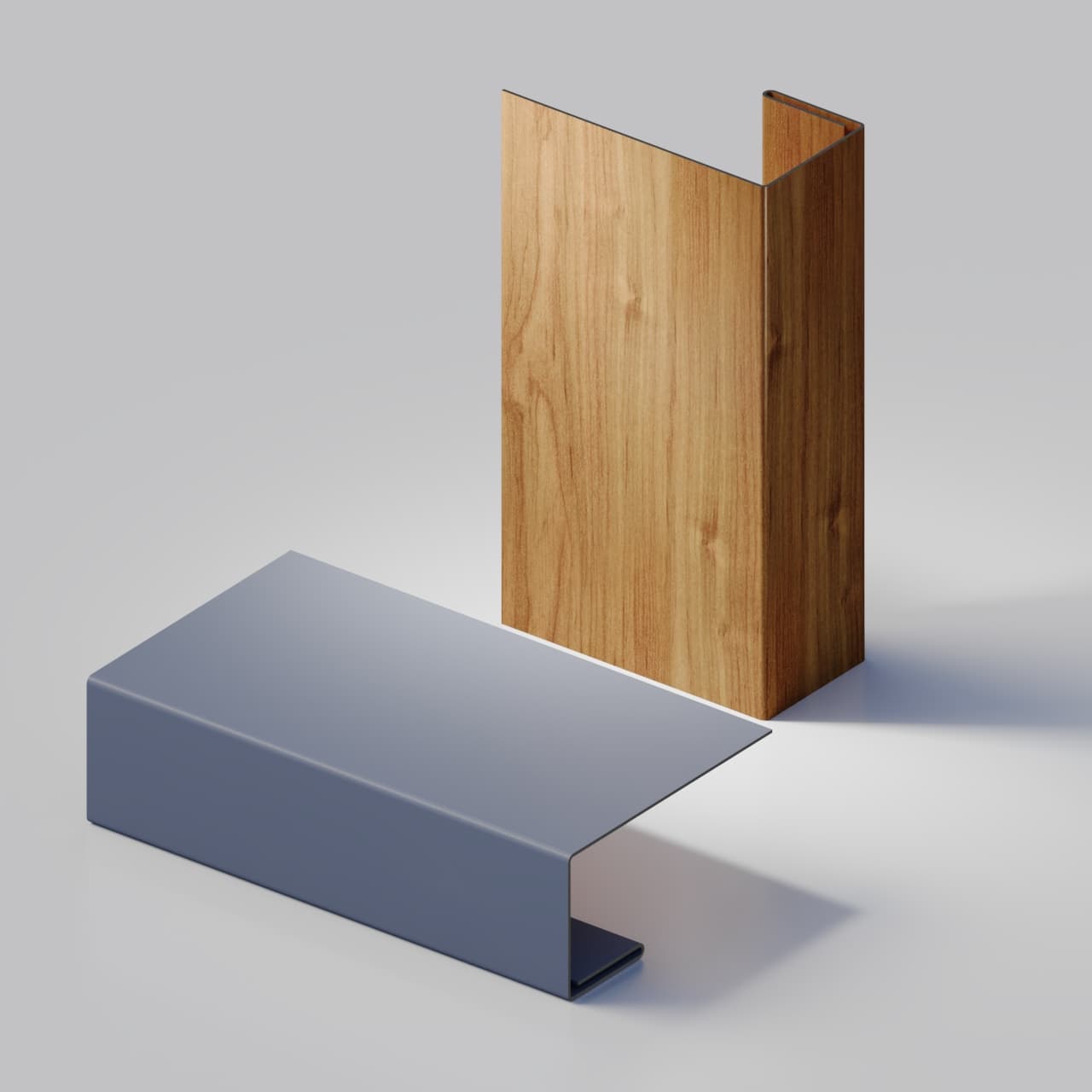

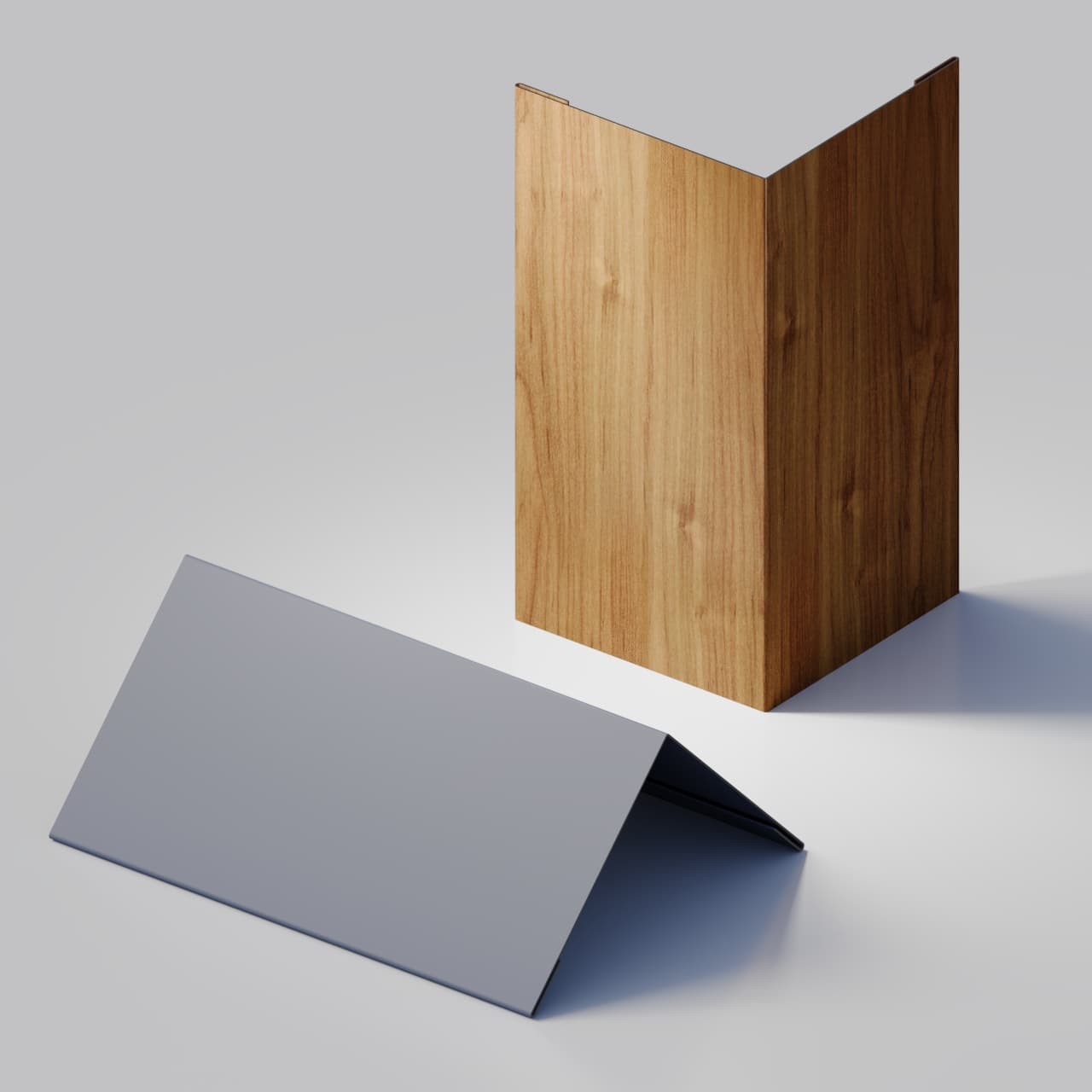

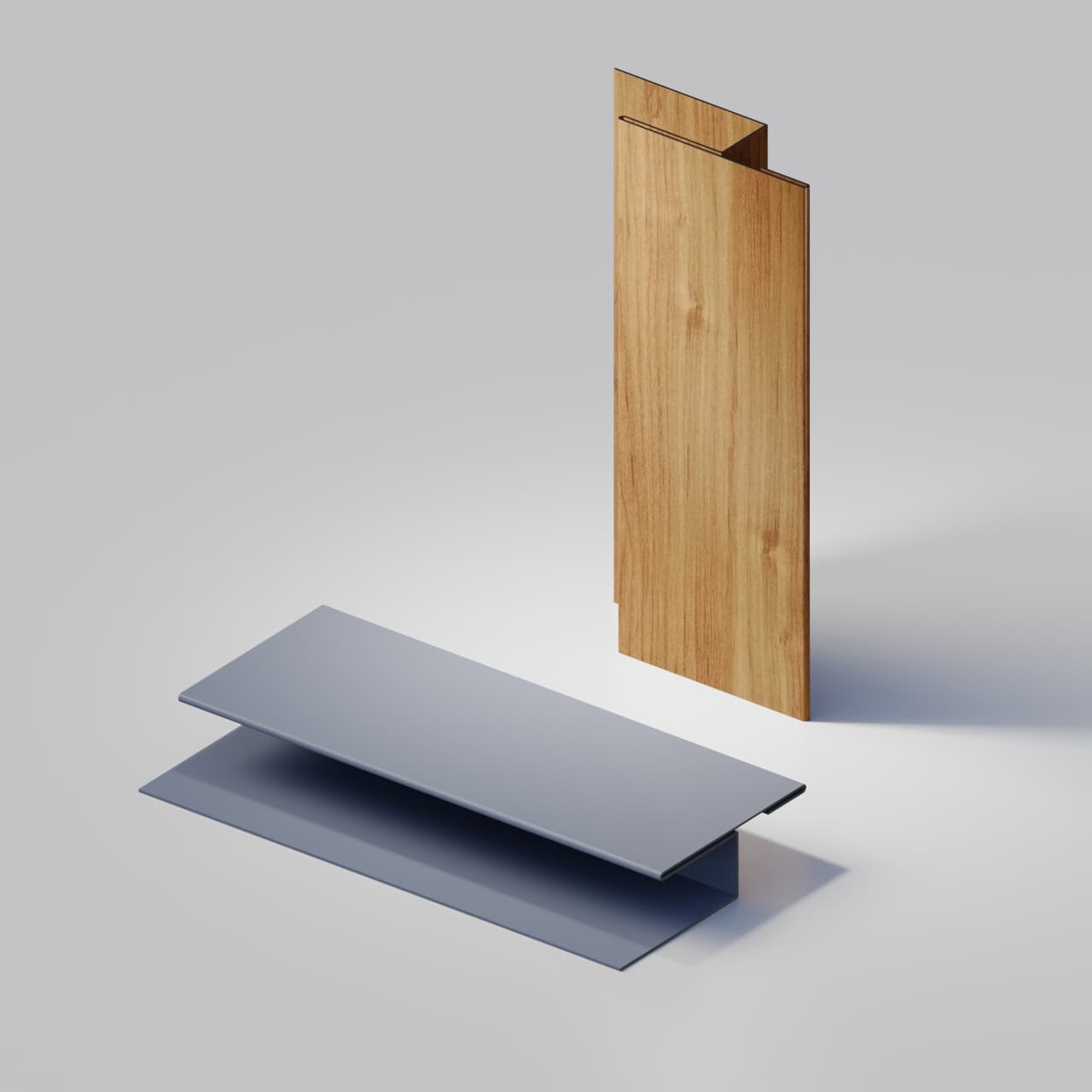

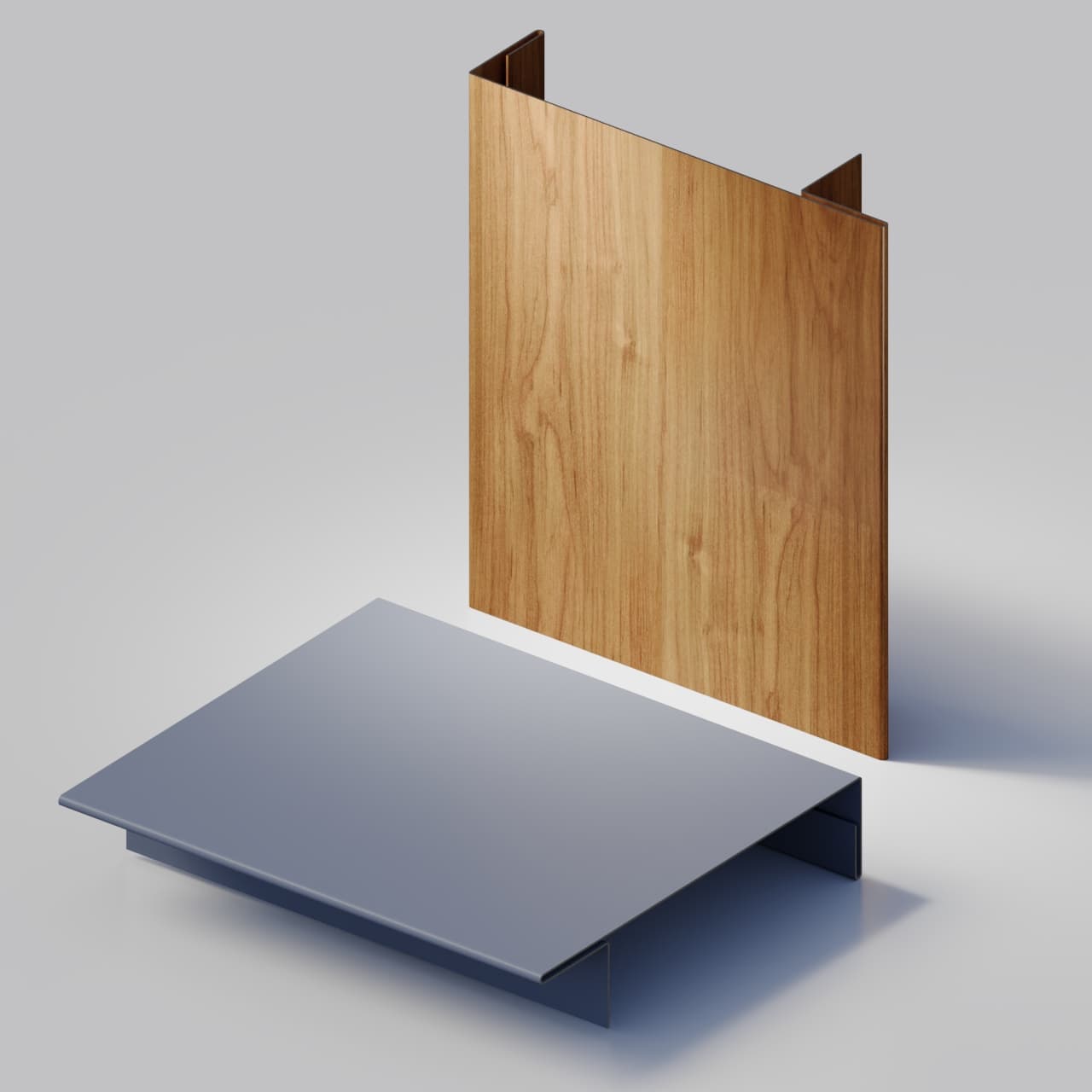

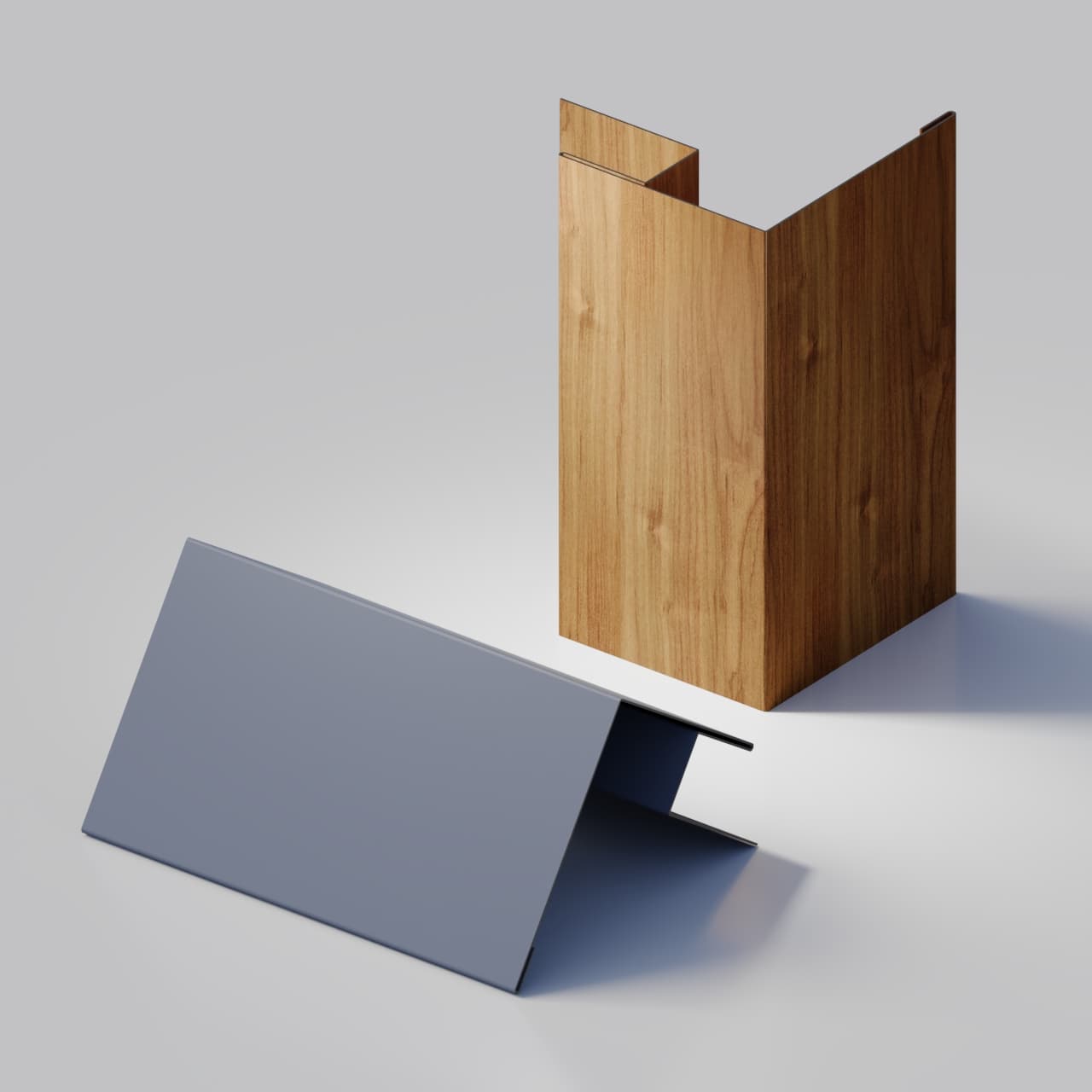

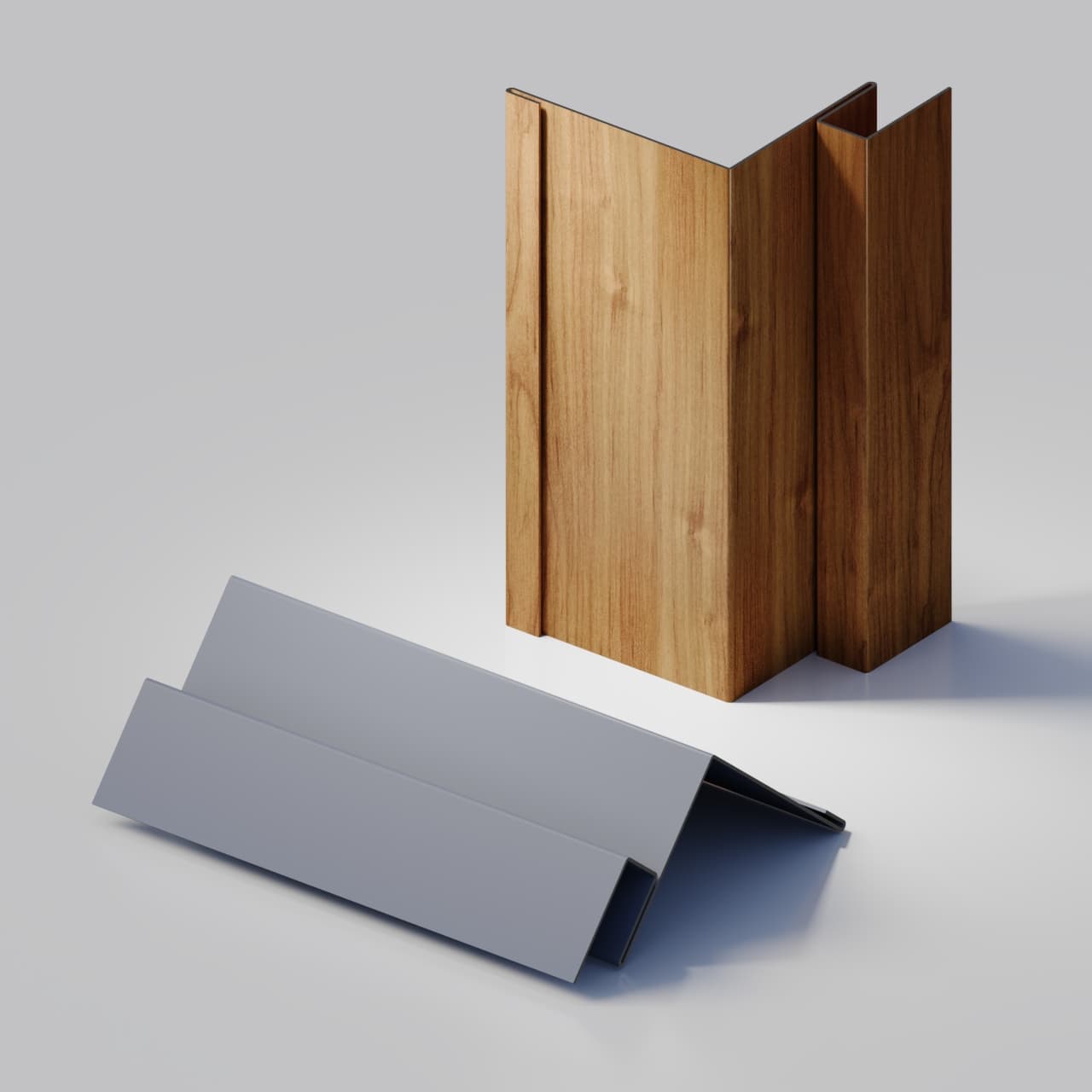

Standard flashings and trim
Project-specific details
24 / 26
Additional steel supply options
Selected prepainted-steel combinations extend beyond the common gauges above. These are separate material options, not availability in every colour or approval for every panel profile.
- 18ga
- SMP
- Selected finish combinations, subject to material and forming review.
- 30ga
- Polyester
- Remaining material only; discontinued once sold out. Confirm before specifying.
- 31ga
- Polyester
- Selected finish combinations, subject to material and forming review.
Zinc and other non-steel materials are specified by their own metal thickness and material standard, not by assuming a painted-steel gauge equivalent. Ask about the thickness required for your project.
Need another specification?
Send the profile, gauge, finish, quantity, lengths, and required date. We'll review the fit and quote it.
Core Series / Featured finishes
Core finishes
in the collection.
These four familiar finishes are part of a wider material offering, with fast-production options subject to order confirmation.
Explore all 101 finishesIce White
A light neutral for a crisp architectural palette.
Digital samples are representative only. Screen settings and lighting affect appearance. Confirm the colour with a physical sample and current material availability before ordering.
Request this finish sample
