Standard J-Trim
Edge Trim
- Total height
- 54mm
- Profile depth
- 19mm
26ga Core material reference · Common project-order choices: 24gaOther gauges and metal thicknesses by project review. Material and production confirmed in writing.
Profile, material & finish.
The Standard J-Trim provides a clean edge termination for panel installations. The J-channel accepts panel edges while the extended leg creates a finished reveal suitable for soffits, fascia, and wall terminations.
Compatible panels: TerraGroove 300 / TerraLap 200
- Material & gauge
- 24ga / 26ga common selections
- 26ga Core reference. Broader gauges and metal thicknesses are reviewed for the selected material, finish and profile.
- Finish selection
- Solid, printed and textured references
- Compare finish systems in the colour collection. Zinc is a separate material-review option; every material and finish is confirmed for the selected profile. Explore colours.
- Explore finishes & material details
Confirm the profile and finish with samples, then send quantities and project requirements for a written quotation.

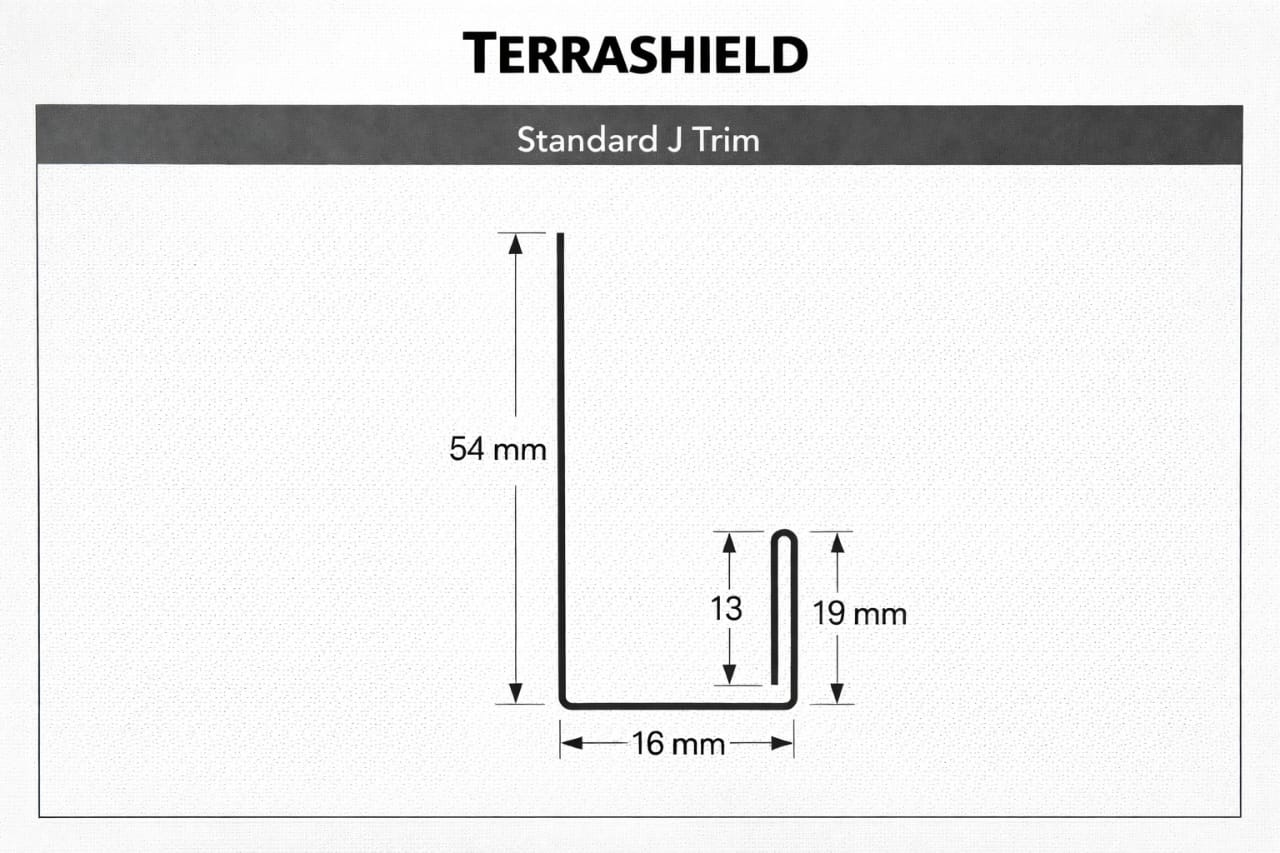

Cross-section profile · dimensions in mm · not to scale
- Total height
- 54mm
- Feed width
- Custom
- Profile depth
- 19mm
- Common gauges
- 24ga / 26ga
Specifications
| Property | Value |
|---|---|
| Channel Width | 16mm |
| Channel Depth | 13mm |
All dimensions are nominal. Finished lengths are confirmed for the actual order, handling plan, and transport method.
24ga and 26ga are common flashing selections. These are common gauge selections, not the full extent of our material supply. Other gauges and metal thicknesses can be requested; suitability for the selected profile is reviewed before production. Confirm the dimensioned section, material, decimal thickness, finish and quantity with the order.
Review gauge and material availabilityApplications
Key Features
- Classic J-channel design
- Extended leg for finished reveal
- Panel compatibility confirmed against the selected profile and detail
- Finish matched to available coil
- Finished lengths confirmed with the order
Explore in 3D

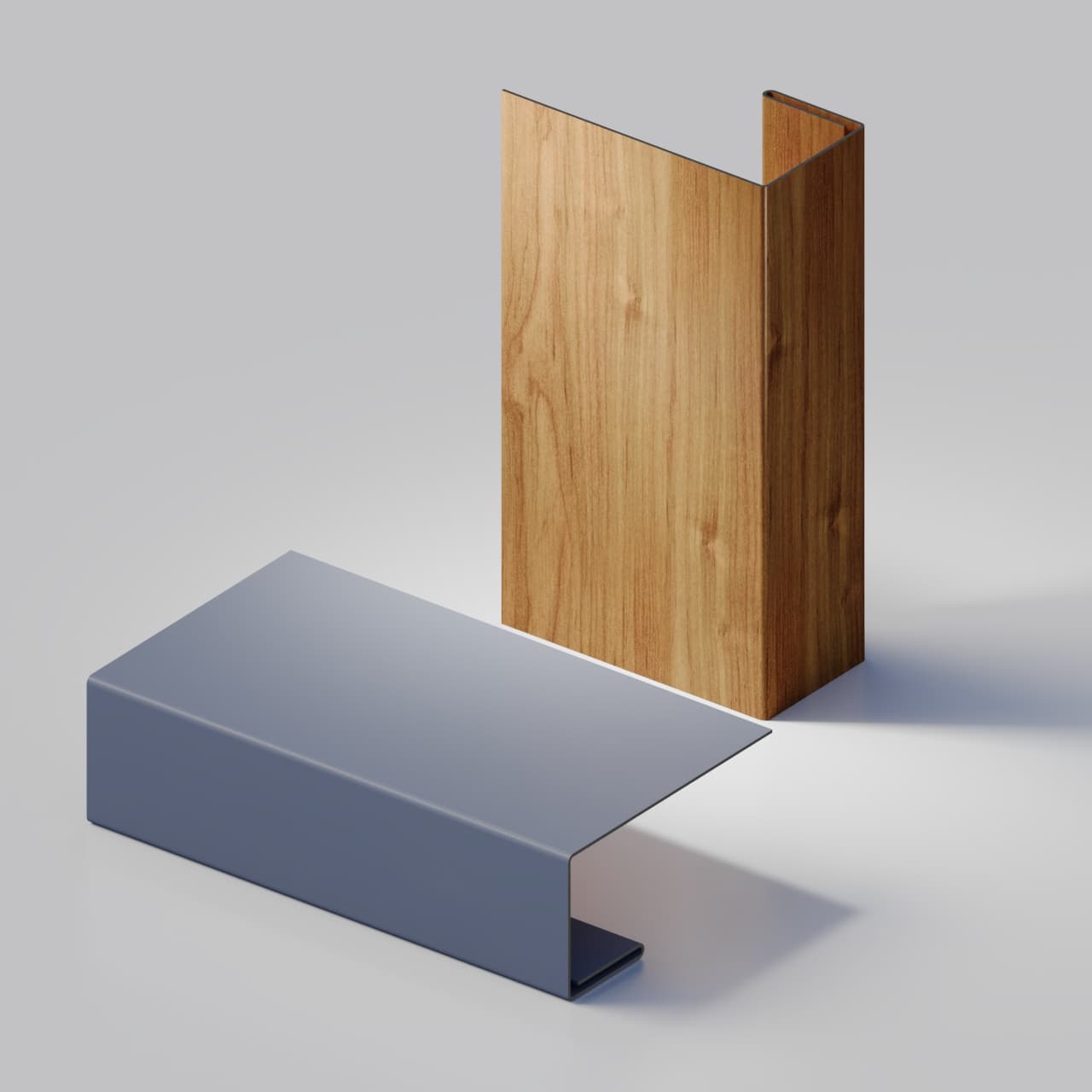

Rotate and inspect the formed Standard J-Trim profile from every angle.
Product literature
Download current Terrashield catalogues and product-specific reference sheets for planning and specification.
Next step / TS-F400-JT
Ready to Start Your Project?
Contact us for pricing, custom specifications, or to discuss your project requirements.
