Outside Corner
Corner Trim
- Face width
- 63.5mm
- Profile depth
- 47.63mm
26ga Core material reference · Common project-order choices: 24gaOther gauges and metal thicknesses by project review. Material and production confirmed in writing.
Profile, material & finish.

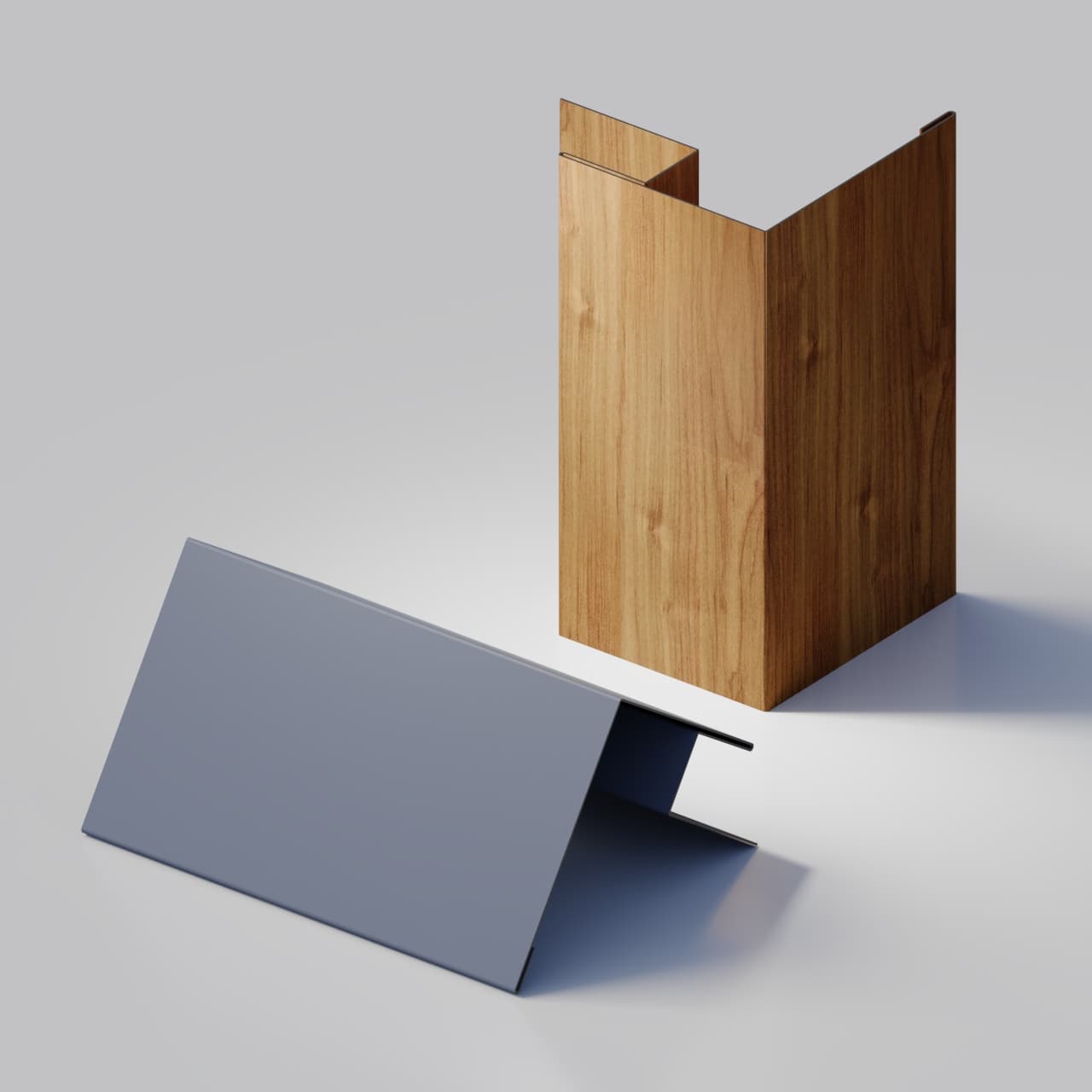

The Outside Corner provides a clean finish for exterior wall corners. Its dual-leg geometry wraps around the corner while the integrated channel coordinates panel edges within the project-approved detail.
Compatible panels: TerraGroove 300 / TerraLap 200
- Material & gauge
- 24ga / 26ga common selections
- 26ga Core reference. Broader gauges and metal thicknesses are reviewed for the selected material, finish and profile.
- Finish selection
- Solid, printed and textured references
- Compare finish systems in the colour collection. Zinc is a separate material-review option; every material and finish is confirmed for the selected profile. Explore colours.
- Explore finishes & material details
Confirm the profile and finish with samples, then send quantities and project requirements for a written quotation.

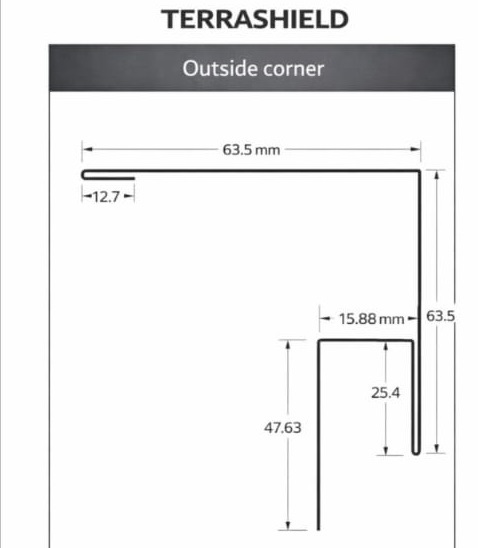

Cross-section profile · dimensions in mm · not to scale
- Face width
- 63.5mm
- Feed width
- Custom
- Profile depth
- 47.63mm
- Common gauges
- 24ga / 26ga
Specifications
| Property | Value |
|---|---|
| Face Width | 63.5mm x 63.5mm |
| Channel Depth | 25.4mm |
All dimensions are nominal. Finished lengths are confirmed for the actual order, handling plan, and transport method.
24ga and 26ga are common flashing selections. These are common gauge selections, not the full extent of our material supply. Other gauges and metal thicknesses can be requested; suitability for the selected profile is reviewed before production. Confirm the dimensioned section, material, decimal thickness, finish and quantity with the order.
Review gauge and material availabilityApplications
Key Features
- Dual-face symmetrical design
- Integrated panel channel
- Supports project-approved corner detailing
- Finish matched to available coil
- Finished lengths confirmed with the order
Explore in 3D
Rotate and inspect the formed Outside Corner profile from every angle.
