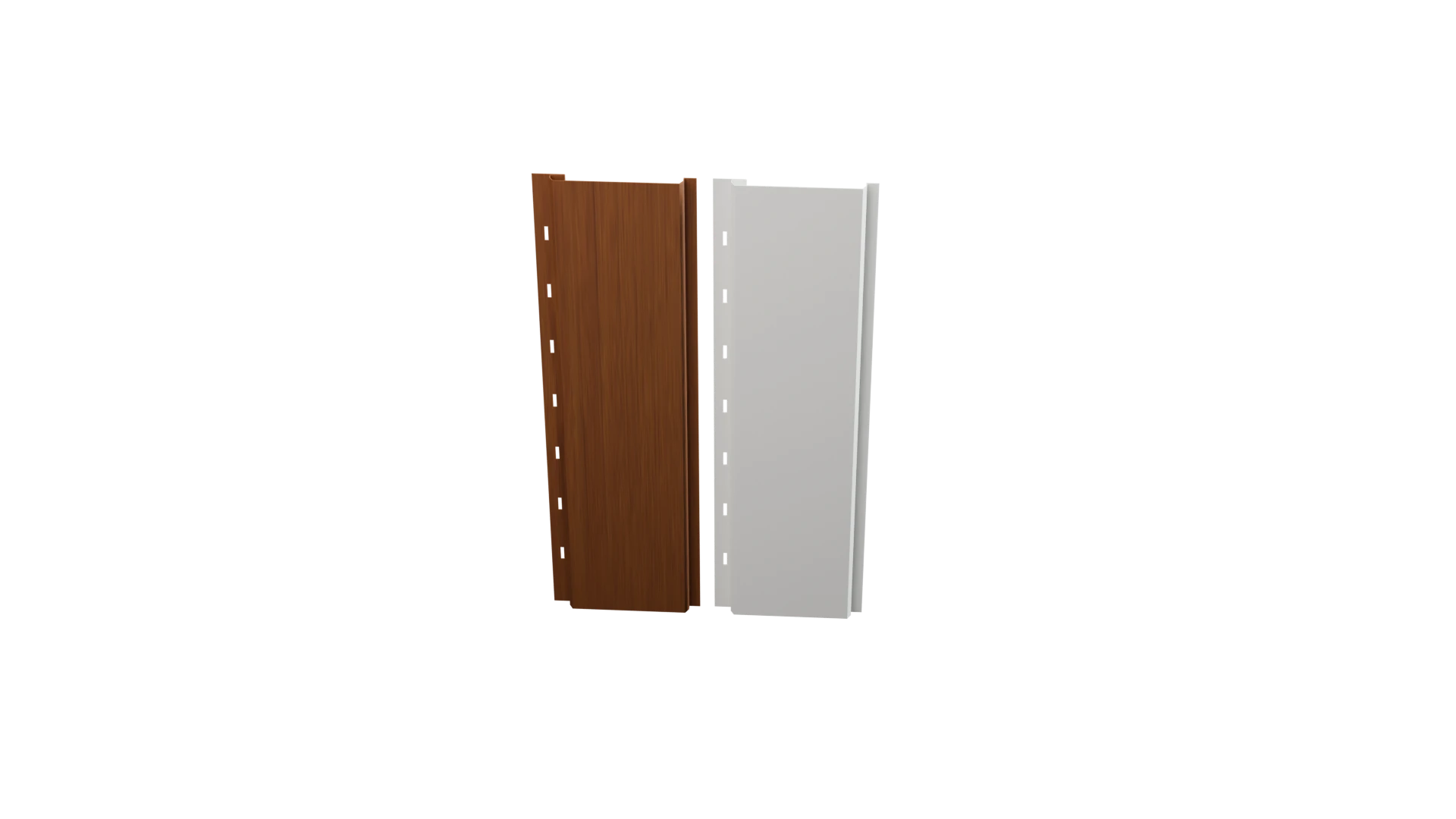

Fixing flange exposed.
This land is the fixing edge. It will sit behind the adjoining panel face.

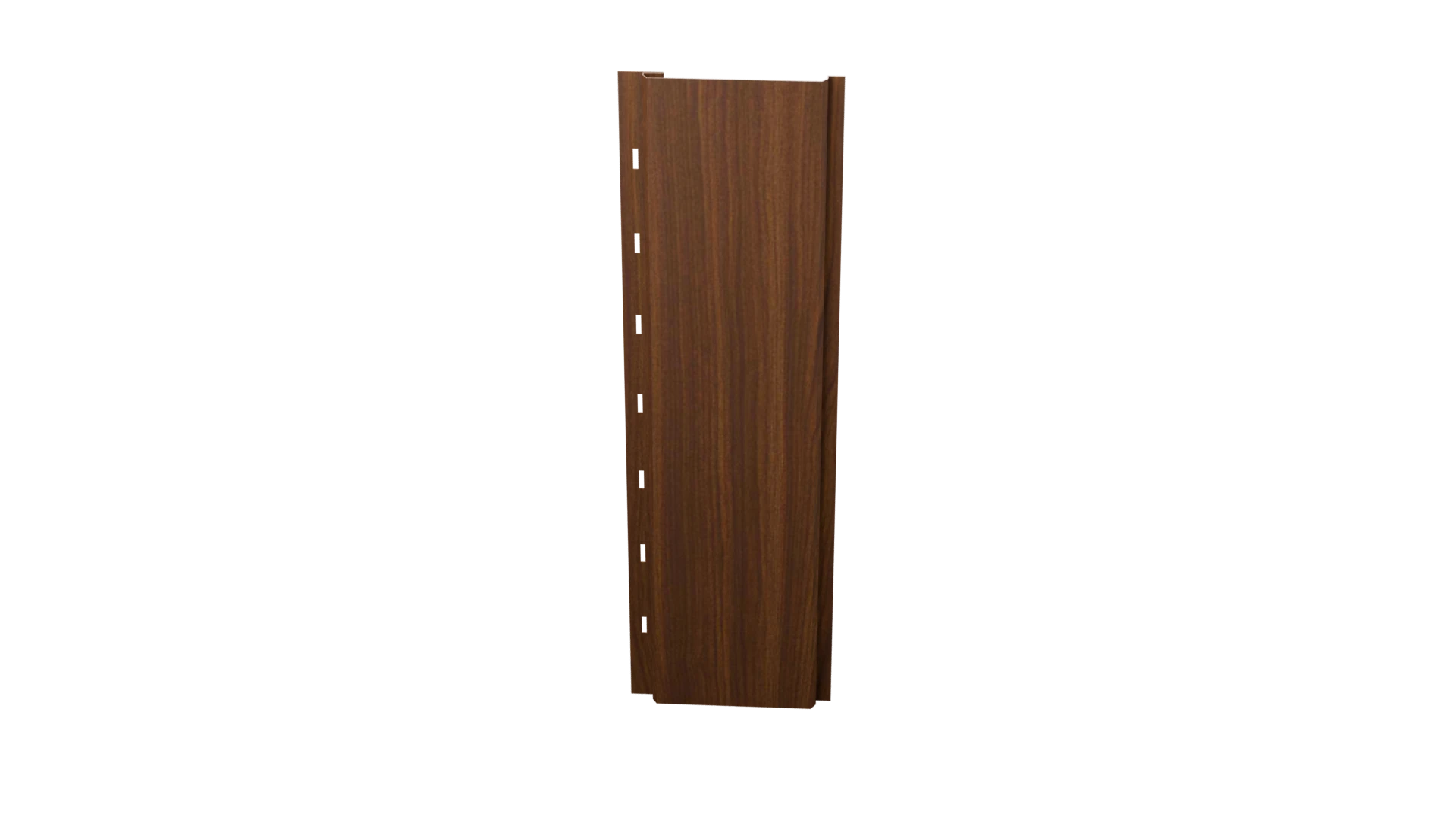

The material, up close
Wood-look character. Formed steel.
Printed grain and solid colour use the same formed profile. Compare a darker wood-look, a lighter wood-look and Ice White as the three panels meet.
The wood appearance is a printed coating, not timber. Confirm the selected finish and material in the project quotation.

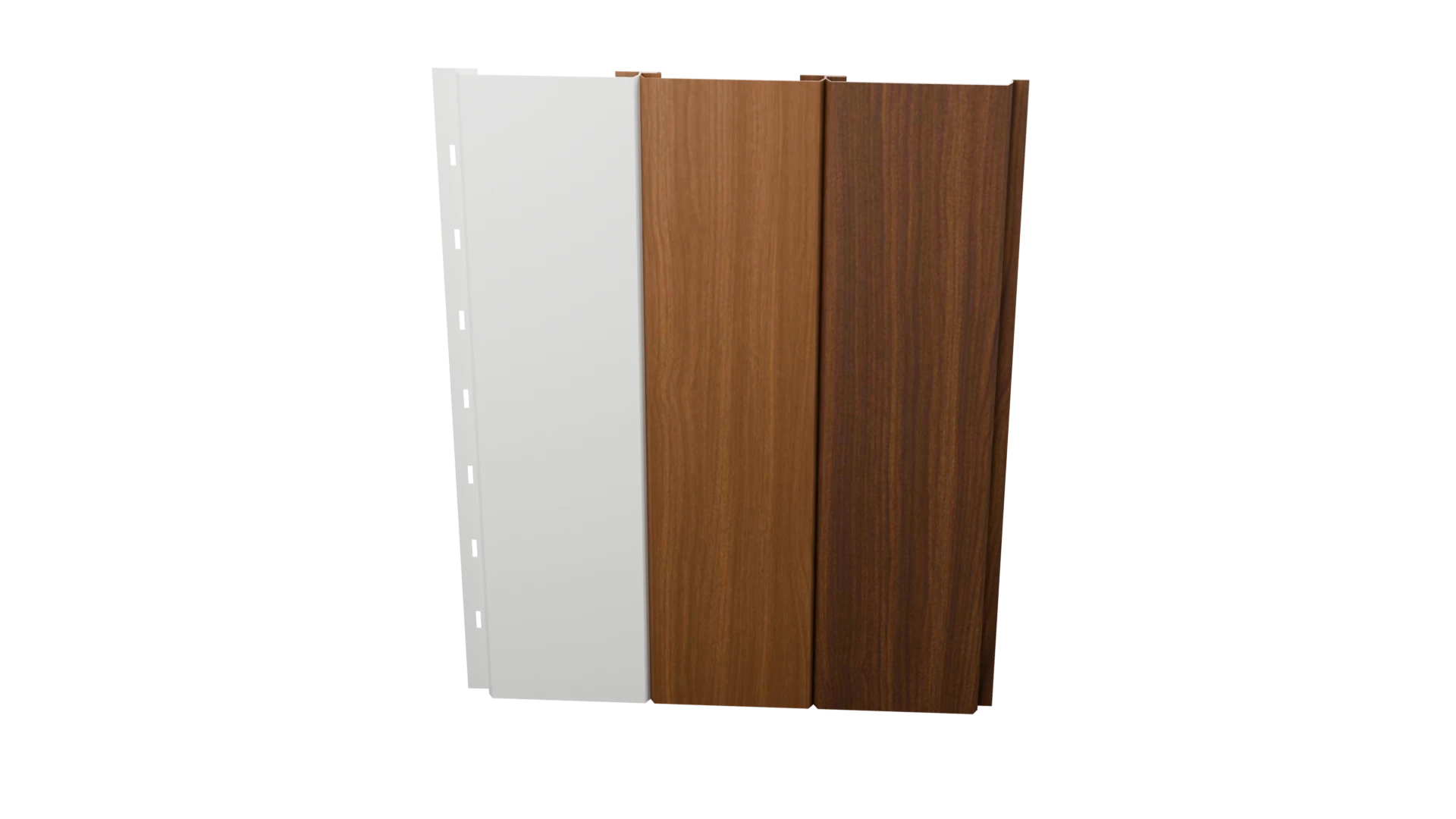

Three finishes. One connected section.
TerraGroove 300
100 mm face shown · Espresso · Acorn · Ice White
How the edges meet
The connection sits behind the face.
The fixing flange belongs to one edge. The adjoining panel's return enters the receiving fold and conceals that fixing edge.
- Fixing flangeThe edge used for fixing is behind the adjoining face.
- Receiving foldThe return engages inside the fold, not through the metal.
- Finished seamFully seated panels leave the narrow formed V-groove.
The animation explains the connection. It does not specify fastener type, spacing or installation tolerances.
TerraGroove 300
The connection is in the fold.

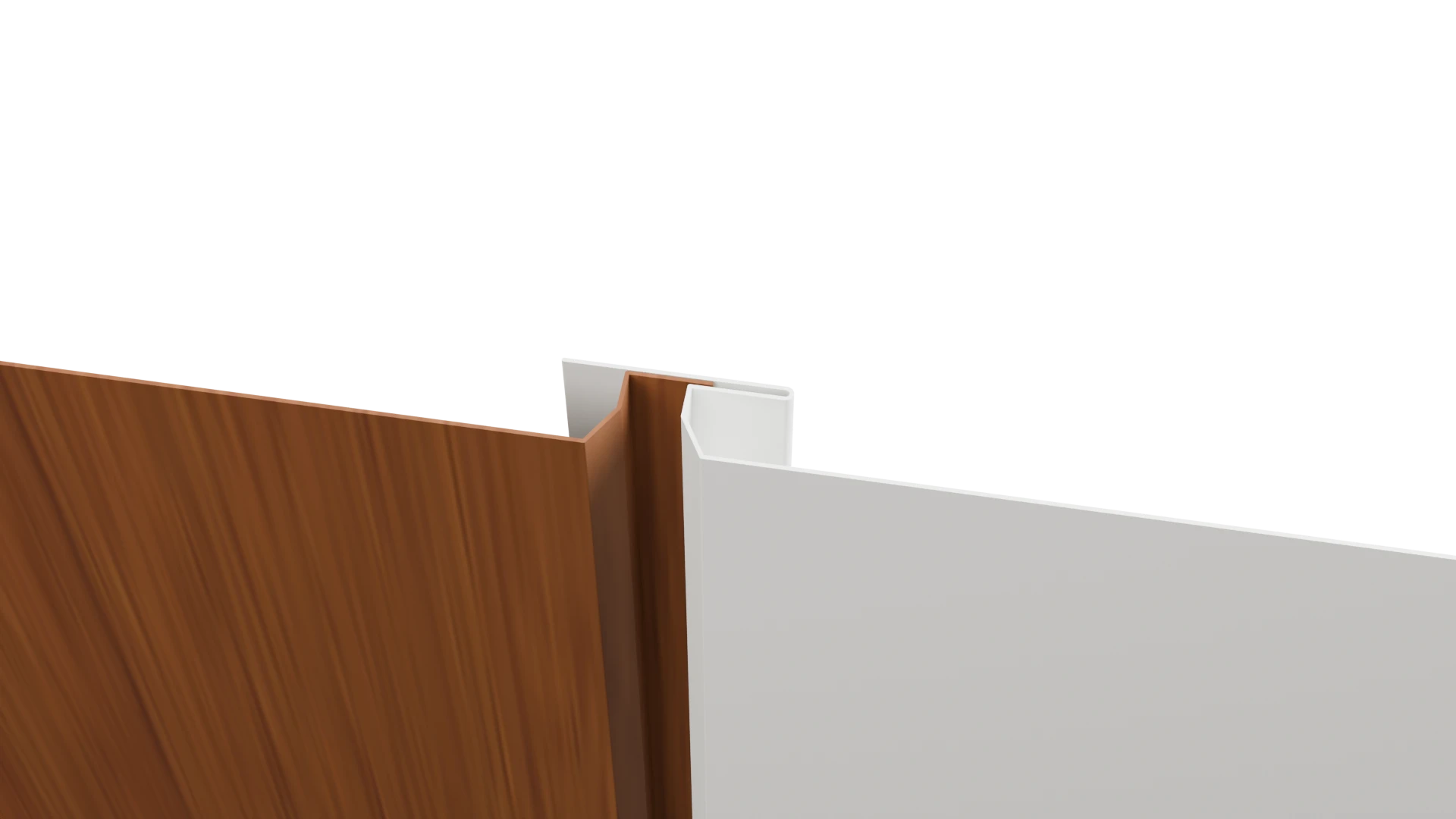

Return into receiving fold.
The adjoining return slides into the folded receiving edge.

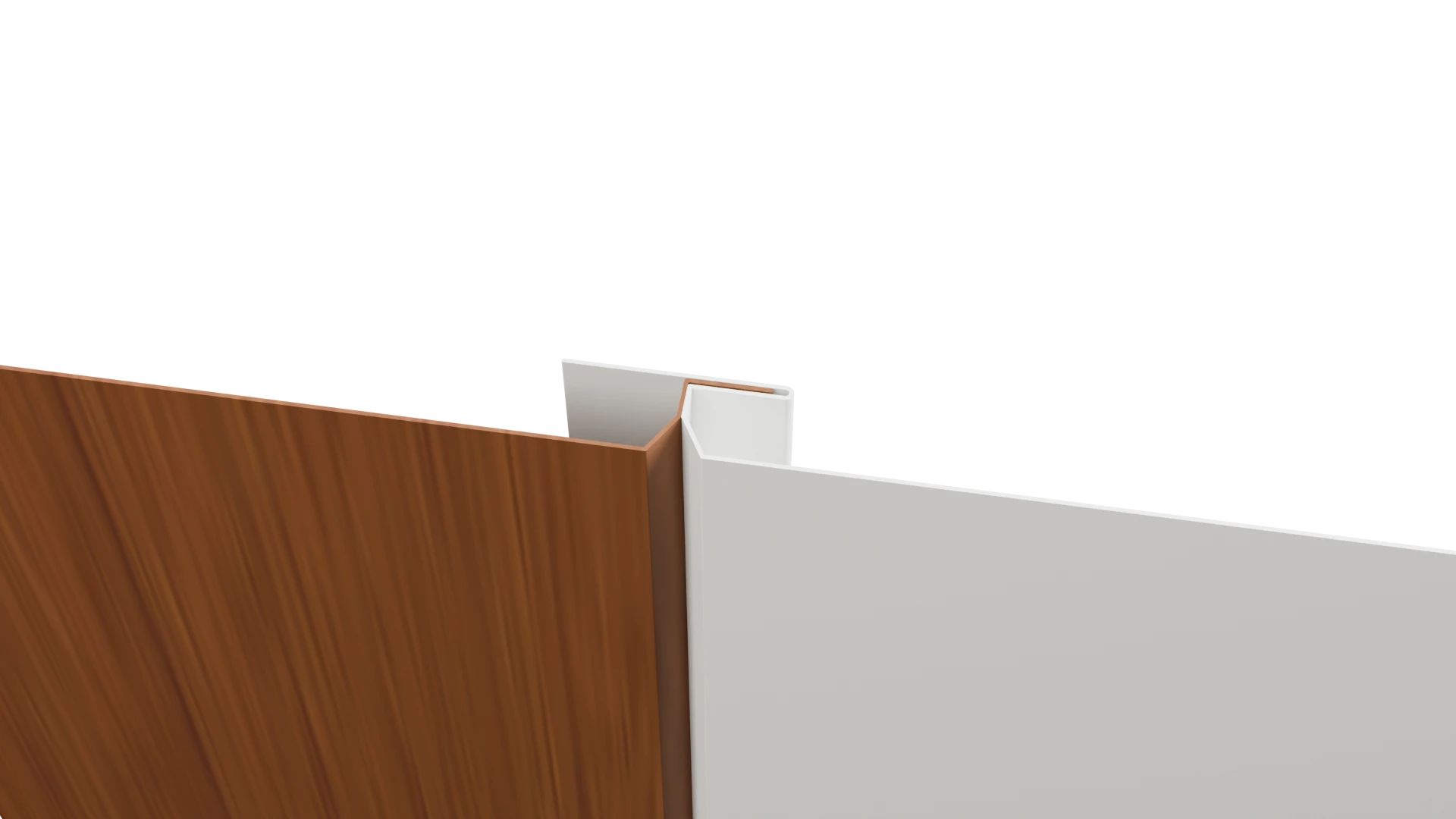

Joint seated. Fixing edge concealed.
The return is engaged inside the fold, leaving the narrow V-groove between the faces.
Connection illustration. Follow the project-specific installation details.
Plan the elevation
Direction changes the visual rhythm.
Vertical lines lead the eye up an elevation. Horizontal courses emphasize its width. Openings, corners and terminations need coordinated trim details in either direction.
What to send with an enquiry
- Selected face width and finish
- Panel counts and finished lengths
- Wall orientation, openings and return details
- Project location and required quantities
Profile, connection and direction
TerraGroove 300

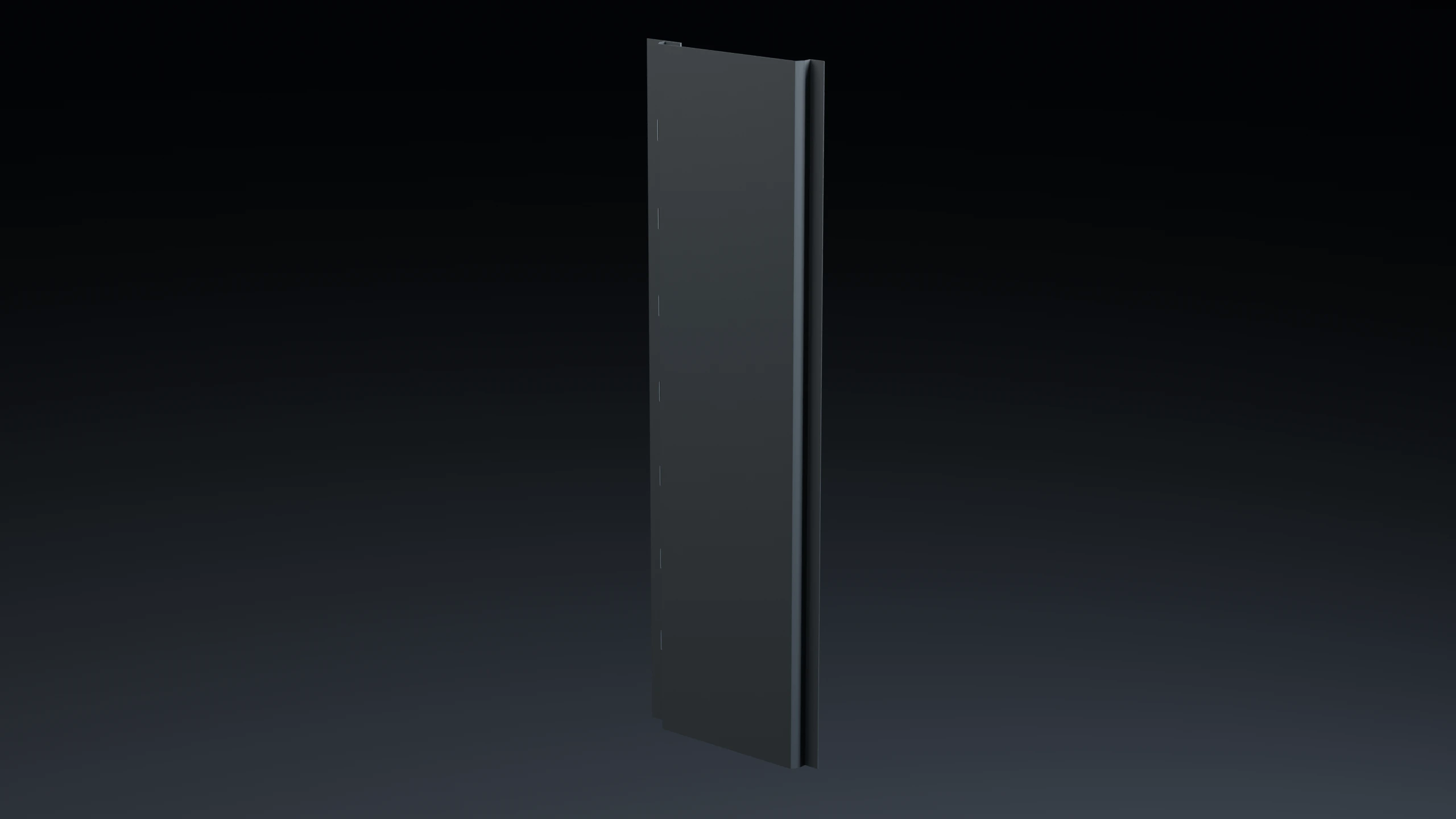

Read the profile.
The face, fixing flange and receiving fold form one continuous steel section.
Look closely at the edge.
The adjoining return enters the receiving fold. The fixing flange sits behind the next panel face.

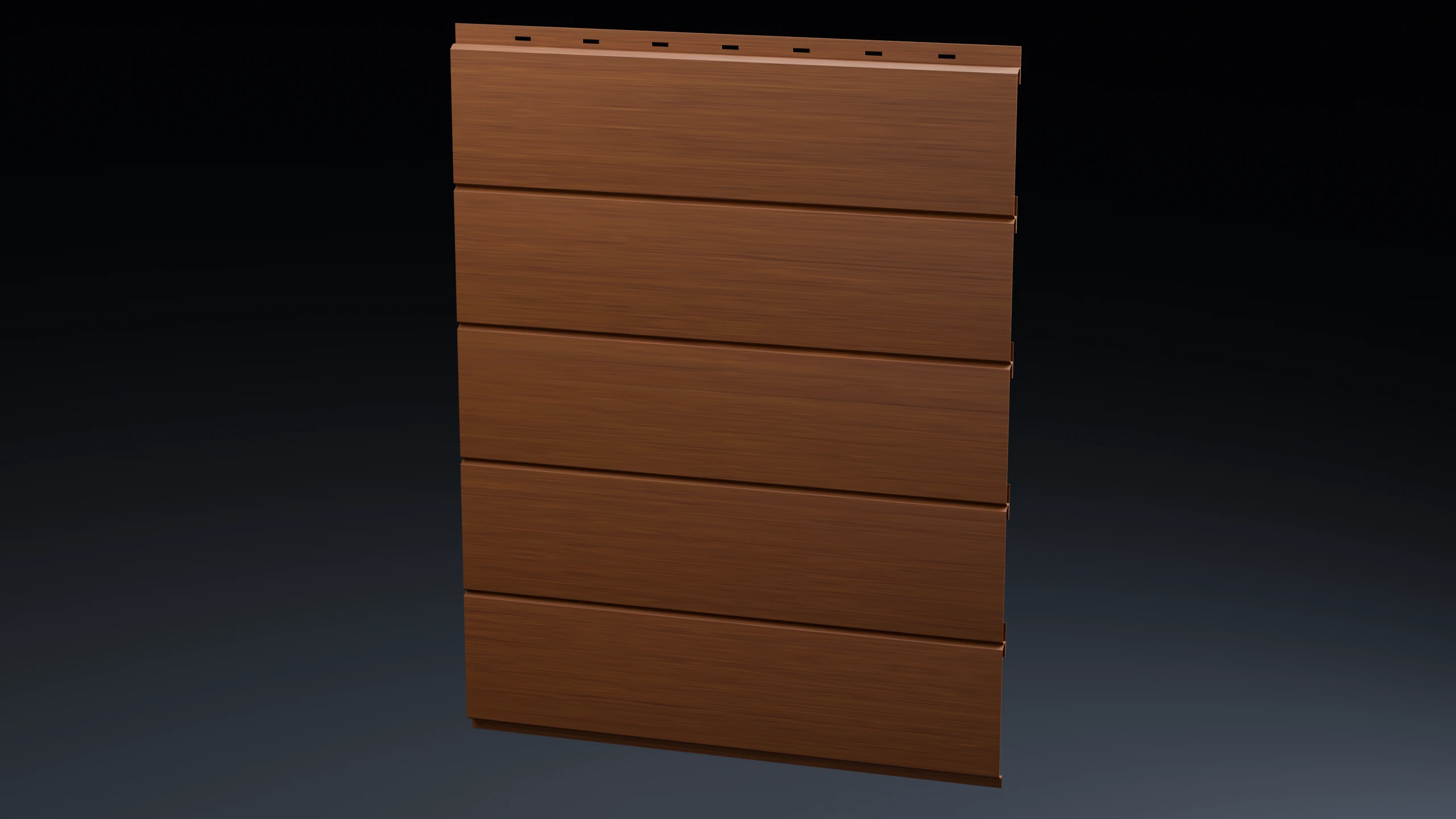

A profile becomes a surface.
Adjacent panels repeat at the selected face width, retaining the same formed V-groove.
Change the direction, not the profile.
Compare horizontal and vertical lines. Coordinate openings, terminations and trim with the project layout.
Then consider the finish.
Solid colour and printed grain change the appearance, while the formed profile stays the same.

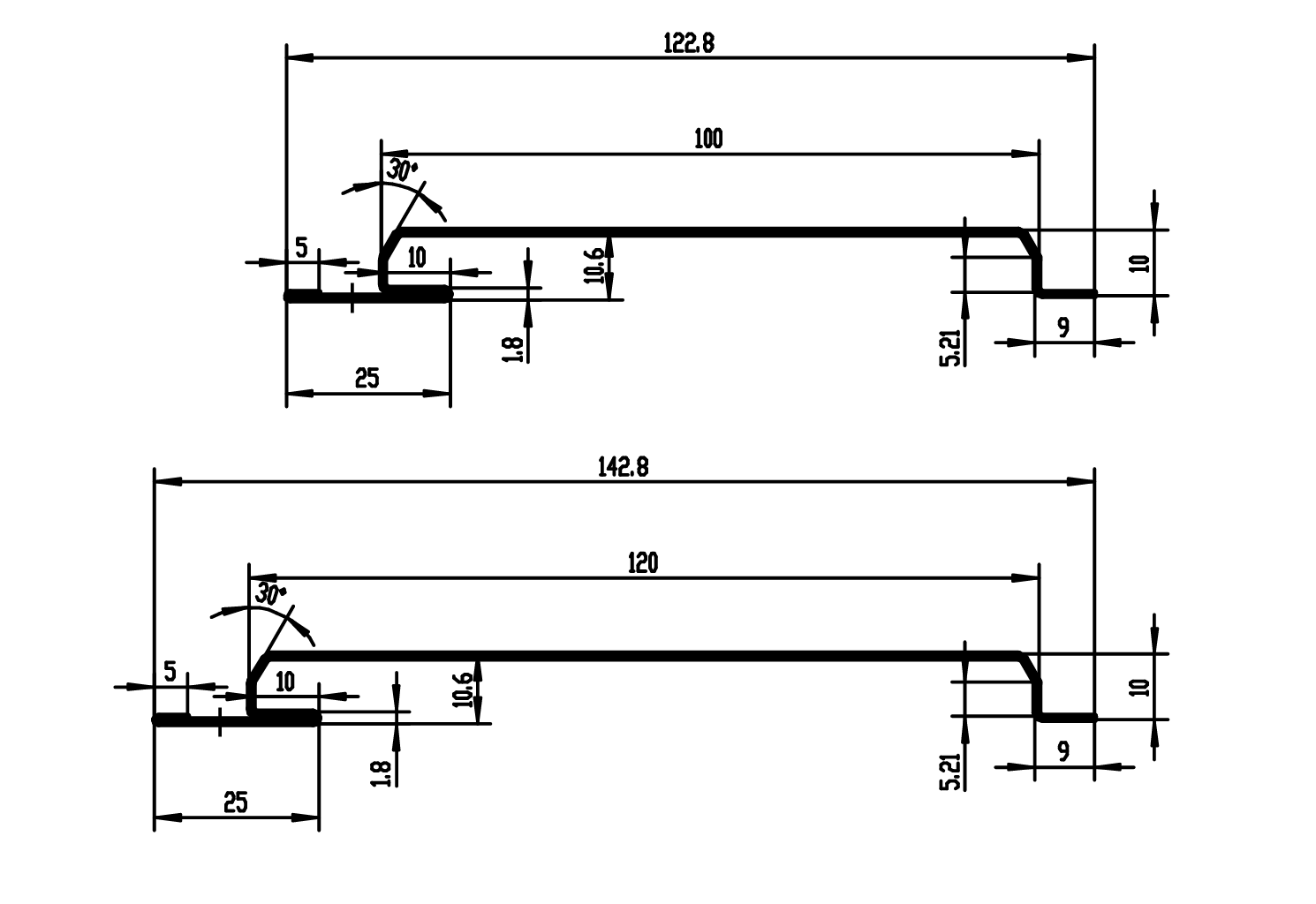

- Face width
- 100 mm
- Formed width
- 122.8 mm
- Profile depth
- 10.6 mm
Illustrative assembly and finish views. Refer to the profile drawing and project-specific installation details.
Choose the finish before the comparison
97 steel finish references.
6 distinct series.
Explore solid colour, metallic effects, printed wood and mineral looks, and textured surfaces. The series identify different finish systems; they are not interchangeable performance or warranty claims.
Explore the complete colour collection ↗
| Steel series | What it covers |
|---|---|
| Core Series | Our four foundational finishes, with fast-production options subject to order confirmation. |
| Classic Series | A broad solid-colour palette in SMP, with the marked polyester option kept distinct. |
| Signature Series | PVDF solid and metallic colour expressions for prepainted steel. |
| Printed Series / PVDF | Printed wood, mineral and patina effects on PVDF-coated steel. These are decorative finishes, not the materials they resemble. |
| Printed Series / SMP | Printed wood and mineral effects on SMP-coated steel, with a distinct coating system. |
| Textured Series | Fine-textured SMP steel finishes with a low-sheen visual character. |
The separate Zinc Series contains a different metal and requires compatibility review. Digital colours are references; approve a physical sample and confirm the material, gauge and finish in the quotation.
Colour in context
Compare the whole composition.
The panel detail leads into the architecture, then into the matched solid and wood-look comparison.TerraGroove 300 / 100 mm
The detail. The architecture. The combination.

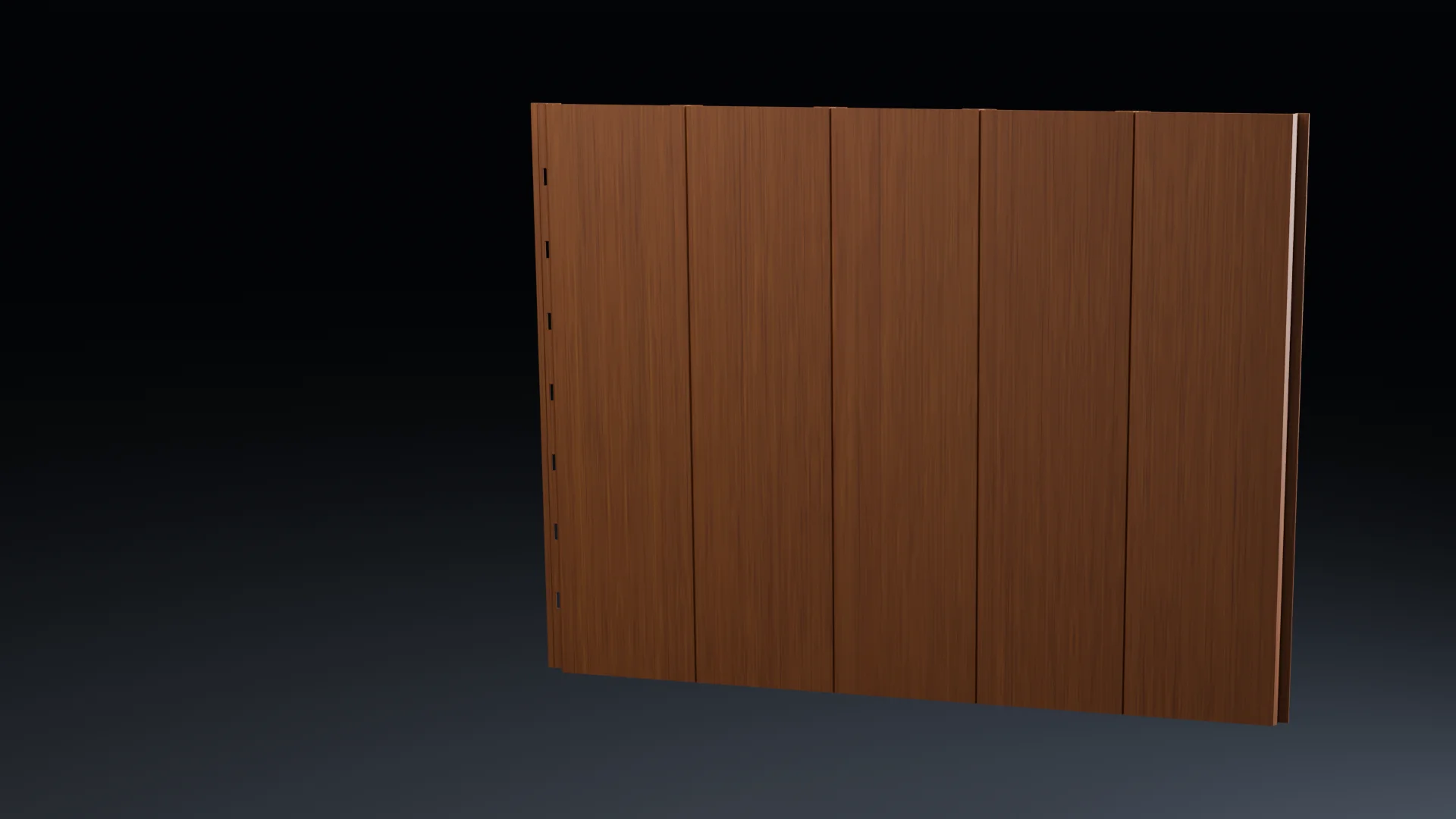

01 / Profile detail
100 mm face
A narrow V-groove gives each face a crisp edge. A defined groove.
Architectural illustration, not installation instructions.
02 / Architecture
A precise line. Part of the architecture.
Combine solid colour and printed grain around the entrance.
Architectural illustration, not installation instructions.
Solid colourFoundry GreyWood-look steelAmberwood
03 / First combination
Solid colour. Printed grain.
Compare the same view in solid colour and wood-look steel. Each side keeps the profile and architectural viewpoint consistent.
Illustrative finishes. Confirm colour and suitability against a physical sample.
Solid colourIce WhiteWood-look steelAcorn
04 / Second combination
Bring both materials together.
Explore another matched combination, with this profile on both the solid main surface and the wood-look accent.
Illustrative finishes. Confirm colour and suitability against a physical sample.
