Sill Drip Trim
Project-Order Flashing Profile
- Back leg
- 7.6mm / 3.0"
Material confirmed with the orderOther gauges and metal thicknesses by project review. Material and production confirmed in writing.
Profile, material & finish.

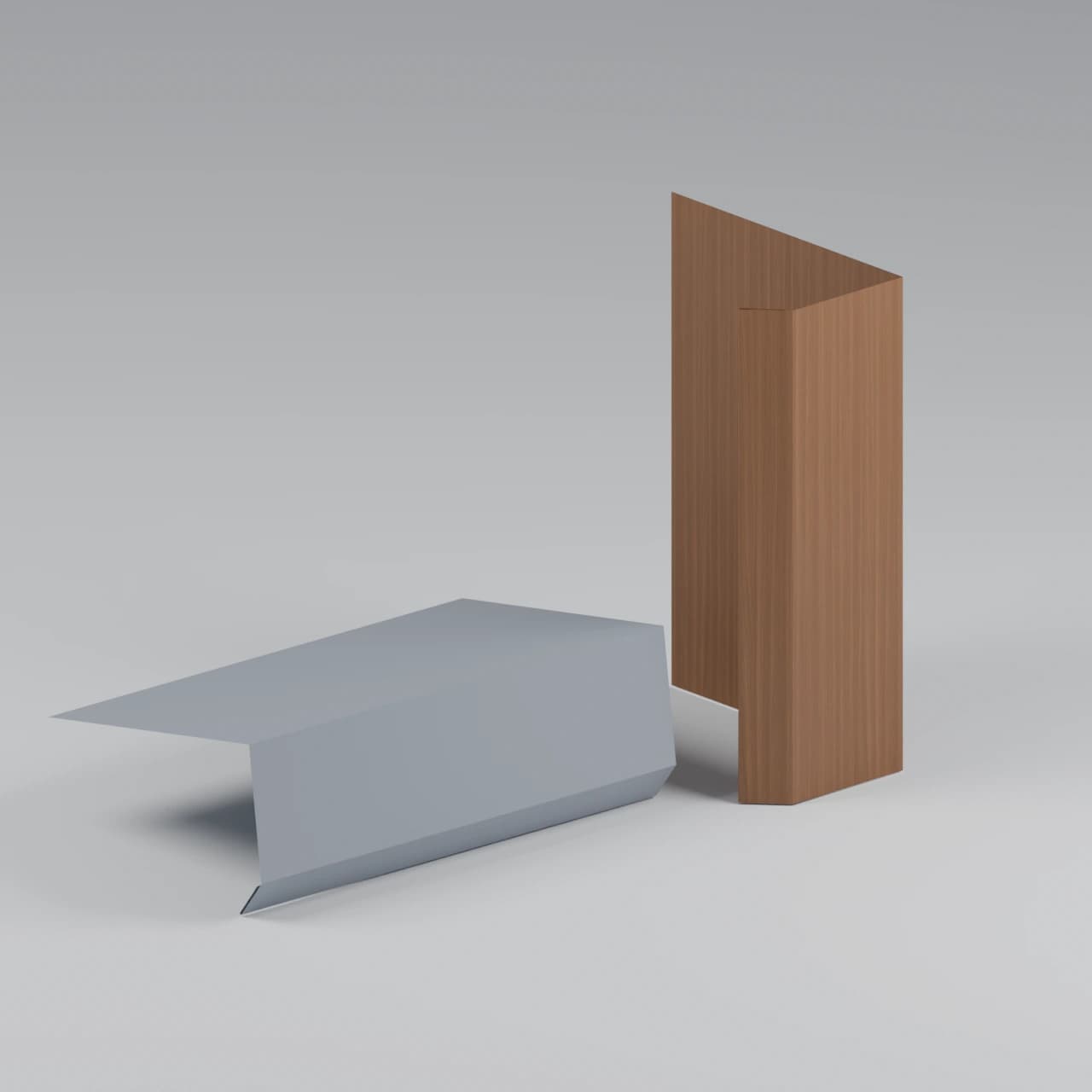

A sloping sill-flashing section with an extended back leg and a downturned return. Review its section with the opening and adjoining wall details.
Compatible panels: TerraGroove 300 / TerraLap 200
- Material & gauge
- Material / gauge confirmed in the quotation
- Project order. Confirm the supplied profile reference, material and forming requirements before ordering.
- Finish selection
- Finish confirmed in the quotation
- Compare finish systems in the colour collection. Zinc is a separate material-review option; every material and finish is confirmed for the selected profile. Explore colours.
- Explore finishes & material details
Send the profile reference, quantities and project requirements for a written quotation. Ask about sample availability for the selected material and finish.
Dimensions and units as supplied in the drawing · not to scale
- Back leg
- 7.6mm / 3.0"
Specifications
| Property | Value |
|---|---|
| Projection | 32mm / 1.3" |
| Returned edge | 1.33 / .5" |
| Back-leg angle | 86.0° |
| Return angle | 135.0° |
| Source Drawing | SillDrip |
| Material / Gauge | Confirmed in the quotation |
Dimensions and units follow the supplied drawing. Finished lengths are confirmed with the order.
Confirm material, finish and adjoining components in the project quotation.
Review gauge and material availabilityApplications
Key Features
- Sloping section with a downturned return
- Solid and wood-look finish references shown
- Lengths and material confirmed with the quotation
