Metal panel manufacturing
Metal panels, made to the actual order.
Work directly with the team that roll-forms the panels, cuts them to project lengths, coordinates supporting trim, and prepares the finished order for pickup or freight.
- Current profiles
- Four panel profiles
- Production timing
- Confirmed with quotation

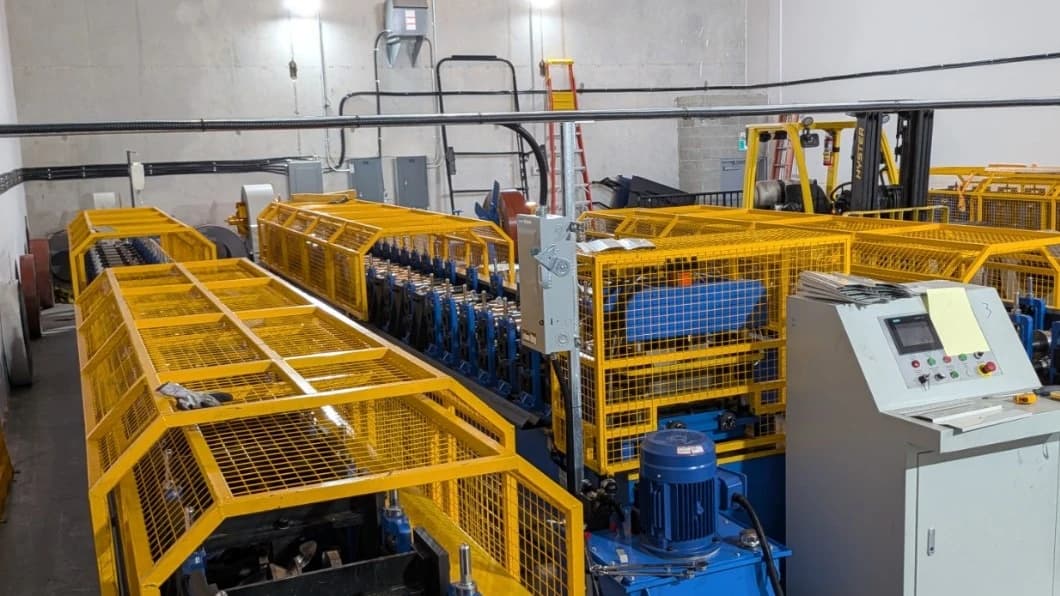

Manufacturing capabilities
From steel coil to finished project-length panels.
Terrashield roll-forms siding and roofing profiles, cuts panels to the project schedule, fabricates supported trims from approved dimensioned sections, and prepares the order for pickup or freight.
Panel profiles
TerraGroove, TerraLap, and TerraCrest
Order scope
Confirmed by written quotation
Panel lengths
Cut against the approved schedule
Supporting trims
Quoted from approved cross-sections
Fulfilment
Workshop pickup or quoted freight
Production timing is confirmed on the project quotation after the profile, material, finish, finished lengths, quantity, and current production schedule are reviewed.
Direct to the workshop
Close to
the work.
Talk with the team forming the panels. We review your profile, finish, lengths and trim details before the order moves to production.
PanelsCut to approved schedules
FlashingsFormed from your sections
HandoffCoordinated pickup or delivery
Production sequence
From a buildable schedule to finished panels.
The fastest orders are the clearest ones. Profile, finish, lengths, quantities, trims, and destination need to be resolved before the material reaches the line.
Production brief
We review the selected profile, finish, finished panel lengths, quantities, trim sections, and delivery destination. Missing dimensions are resolved before pricing or production.
Material confirmation
The quotation confirms the profile, gauge, decimal thickness, finish, material information, profile/forming compatibility, order availability and estimated production window.
Line setup + roll forming

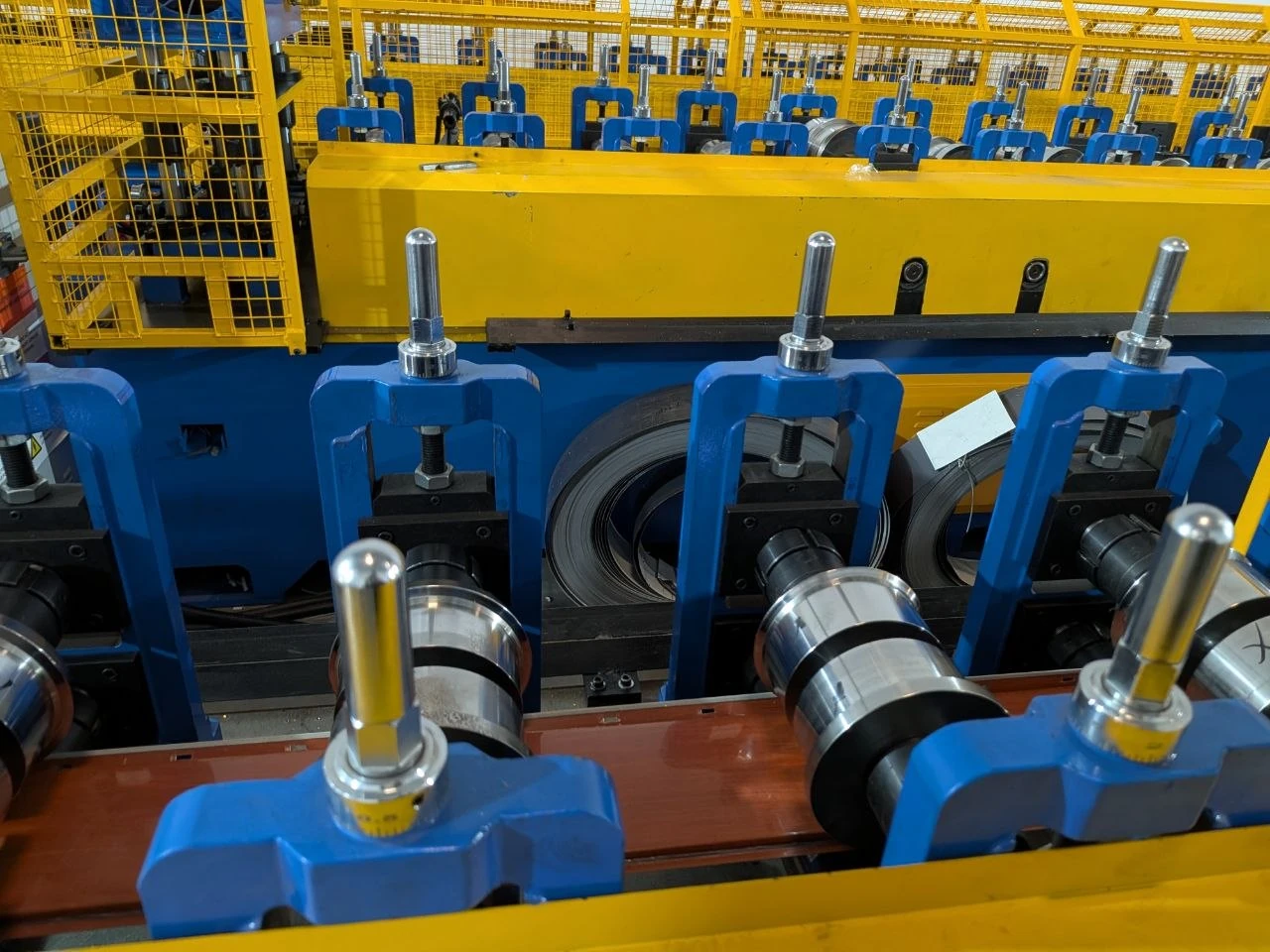

Prepainted coil is loaded into the appropriate line and formed progressively through the profile-specific roller stations in the workshop.
Cut + order check
Panels are cut to the approved production schedule, counted, checked against the order, and prepared for pickup or transport protection.
Pickup or quoted freight
Workshop pickup is available. Delivery and long-distance freight are quoted according to the finished panel lengths, order size, unloading plan, and destination.
Manufacturing scope
Know what is on the line before the quote starts.
Clear exclusions are part of professional manufacturing. They prevent a price from quietly promising a product, system, or engineering service that is not actually included.
Ready to quote
- TerraGroove 300 and TerraLap 200 siding
- TerraCrest 100 and 200 roofing or siding panels
- Project-specific finished panel lengths
- Supporting trims from approved dimensioned sections
- Workshop pickup or destination-based freight
Separate or excluded scope
- A new continuous siding shape without dedicated tooling review
- Generic fastener or third-party hardware packages
- Wide architectural fascia or vented soffit systems
- Structural spans, fastening schedules, or wall-assembly engineering
- Fire ratings, service-life claims, or warranties not supported by separate documents
- Unpriced free delivery outside a confirmed quotation
Material traceability
Match the material to the profile and finish.
Steel supply includes distinct PVDF, SMP and selected polyester finishes, with common 22, 24 and 26 gauge selections. Other gauges and thicknesses can be requested. The quotation confirms the exact material, decimal thickness, finish, profile/forming compatibility and order availability. Zinc is a separate metal requiring material and forming review.
Current Core lot reference
The values below describe the current documented Core lot only, not every finish, gauge or future lot.
- Material
- Prepainted Galvalume steel
- Specification
- ASTM A792-AZ150
- Gauge
- 26 gauge
- Thickness
- 0.48 mm BMT / 0.52 mm TCT
- Finish description
- 70% PVDF, 30/7 micron paint
Material documentation describes the current coil stock. It is not a substitute for project-specific wall, roof, fire, or structural design.
Production-ready quotation
Send the information that changes the price.
A usable brief reduces clarification loops and keeps the quotation tied to what can actually be made and transported.
Include in your request
- 01Selected Terrashield profile
- 02Required gauge or decimal BMT
- 03Finish preference
- 04Finished length and quantity for every panel
- 05Dimensioned cross-sections for supporting trims
- 06Project location and delivery destination
- 07Required-on-site date
Terrashield confirms
- Confirmed production scope
- Material and finish availability
- Panel and approved-trim pricing
- Estimated production window
- Pickup or freight terms
- Items excluded from Terrashield's scope
Unit 130, 11920 Forge Place, Richmond, BC V7A 4X9
Workshop pickup by confirmed arrangement.
Manufacturing FAQ
Scope, timing, and documentation.
These answers describe the current operating scope. Final terms belong in the written quotation for the actual order.
How does Terrashield manufacture metal siding?
Current Terrashield panel profiles are roll-formed and cut from prepainted steel coil. Raw coil is sourced separately and its current specification is confirmed through the applicable mill documentation.
What metal siding profiles are in current production?
The current production scope includes TerraGroove 300, TerraLap 200, and TerraCrest 100 and 200. Other catalogue concepts are not treated as available unless confirmed in writing on a quotation.
Can Terrashield manufacture with 24-gauge or 22-gauge material?
Yes. 24 and 26 gauge are common architectural-panel selections, while TerraCrest commonly uses 22, 24 and 26 gauge. These are not universal supply limits. Additional gauges and metal thicknesses are available by project enquiry, with the selected material, decimal thickness, finish and profile/forming compatibility confirmed before production.
What is the typical metal panel production time?
Production timing is confirmed on the project quotation after the profile, material, finish, finished lengths, quantity, and current production schedule are reviewed.
Can Terrashield manufacture a completely custom siding profile?
Not as a normal press-brake service. A new continuous siding geometry generally requires dedicated roll-form tooling and a separate feasibility review. Terrashield can quote supported trims for current panel systems from approved dimensioned sections.
Does Terrashield supply fasteners, fascia, or vented soffit systems?
Not as part of the current standard manufacturing scope. Fasteners are specified by the installer or system designer. Terrashield does not currently offer a generic fascia package or a vented soffit system.
What material information is confirmed for an order?
The selected material is confirmed with its applicable documentation, including specification, gauge, decimal thickness, coating system and mechanical values. Base-metal thickness (BMT) excludes the coatings; total-coated thickness (TCT) includes them. Current Core lot values are a reference for that lot only. Material documentation does not replace project-specific assembly design or separate warranty terms.
Can Terrashield review drawings for a quotation?
Yes. Drawings can be used to identify panel lengths, counts, transitions, and trim sections. Terrashield reviews production feasibility, while the project's qualified designer and installer remain responsible for the building assembly and code compliance.
Continue exploring
Move from manufacturing capability to the exact material and application brief.
Need a manufacturable quote?
Send the profile, lengths, quantities, finish, and destination.
Start with the building, preferred profile or look, approximate quantities, finish, destination, and timing. Add the final panel schedule and trim sections when ready.
